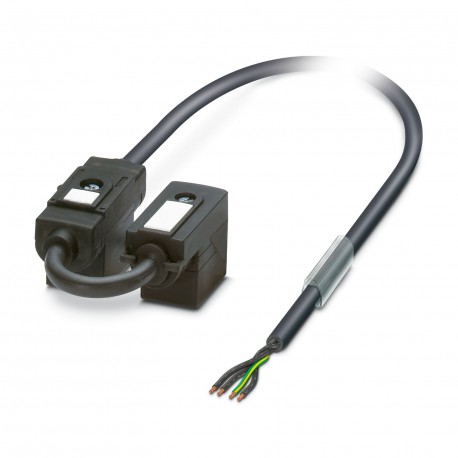

PHOENIX CONTACT SAC-3,0/0,2-116/2XB-1L-Z SAC- 3,0/0,2-116/2XB-1L-Z 1458253 PHOENIX CONTACT Double valve connector cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC- 3,0/0,2-116/2XB-1L-Z 1458253 PHOENIX CONTACT Double valve connector cable

SAC-3,0/0,2-116/2XB-1L-Z

1458253

PHOENIX CONTACT

1 Pcs.

Double valve connector cable Dual Valve Connector Cable, 4-Pole, Free Cable End, to Valve Connectors B (10mm), with 1 LED, connected to Diode Z and Valve Connectors B (10mm), with 1 LED, connected to Diode Z, cable length: 3 m, distance from valve connector: 0.2 m Double valve connector cable, 4-position, PUR/PVC, black, free cable end, on Valve connector B (10 mm), with 1 LED, Wiring: Z diode and Valve connector B (10 mm), with 1 LED, Wiring: Z diode, cable length: 3 m, valve connector spacing: 0.2 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable with valve connector
ApplicationStandard
Number of positions4
No. of cable outlets1
Shieldedno
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialTPU
Material housing valve plugTPU
Contact materialCuSn
Valve plug contact insert materialPA 6.6
Contact surface materialSn
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN24 V AC
24 V DC
Nominal current IN4 A
Valve connector characteristics
Fixing screwsM3 x 29
Pulse power40 W (at 100 µs square-wave pulse)
Terminal voltage70 V (at 2 mA constant current)
Reverse voltage50 V
Mechanical properties
Mechanical data
Insertion/withdrawal cycles50
Signaling
Status display1 LED
Status display presentYes
Connector
Connection 1
Typefree cable end
Connection 2
TypeValve connector B (10 mm)
MaterialCuSn (Contact)
Sn (Contact surface)
PA 6.6 (Contact carriers)
TPU (Housing)
Connection 3
TypeValve connector B (10 mm)
MaterialCuSn (Contact)
Sn (Contact surface)
PA 6.6 (Contact carriers)
TPU (Housing)
Cable/line
Cable length3 m
0.2 m
PUR/PVC, 0.75 mm², black [116]
Dimensional drawinglzxrarnasf.jpg
Cable weight57 kg/km
UL AWM Style20549
Number of positions4
Shieldedno
Cable typePUR/PVC, 0.75 mm², black [116]
Conductor structure signal line24x 0.20 mm
AWG signal line18
Conductor cross section4x 0.75 mm²
Wire diameter incl. insulation1.7 mm ±0.05 mm
External cable diameter6.30 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorblack
Conductor materialBare Cu litz wires
Material wire insulationPVC
Single wire, colorblack 1, black 2, black 3, green/yellow
Overall twist4 wires, twisted
Max. conductor resistance26 Ω/km (at 20 °C)
Insulation resistance≥ 20 MΩ*km
Nominal voltage, cable300 V
Test voltage1200 V
Smallest bending radius, fixed installation63 mm
Flame resistanceaccording to DIN VDE 0482
According to DIN EN 50265-2-1
in acc. with UL FT-2
Ambient temperature (operation)-5 °C ... 80 °C (Cable, flexible installation)
-40 °C ... 80 °C (cable, fixed installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 85 °C (valve plug)
Standards and regulations
Valve connector
Standard designationValve connector
Standards/specificationsEN 175301-803

ETIM for 1458253 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Black
With LED indication (EF005950) Yes
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -5 °C
Rated voltage (EF000228) 24 V
Degree of protection (IP) (EF005474) IP65
