PHOENIX CONTACT SAC-12P-MS/ 3,0-PUR SCO SAC-12P-MS/ 3,0-PUR SCO 1430543 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-12P-MS/ 3,0-PUR SCO 1430543 PHOENIX CONTACT Sensor/actuator cable

SAC-12P-MS/ 3,0-PUR SCO

1430543

PHOENIX CONTACT

1 Pcs.

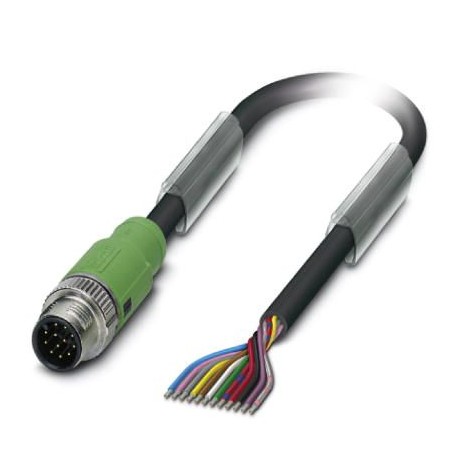

Sensor/actuator cable Sensor/actuator cable, 12-pole halogen-free, M12 straight connector, coding: A SPEEDCON, to free cable end, cable length: 3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1430543
Packing unit1 pc
Catalog pagePage 218 (C-2-2017)
GTIN4046356456364
Weight per Piece (excluding packing)189.100 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable3 m
Stripping length of the free conductor end35 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C1.5 A
Rated voltage30 V AC
30 V DC
Number of positions12
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Resistance to oilDIN VDE 0472 Part 803, test type B
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Flammability rating according to UL 94V0

Cable

Conductor cross section12x 0.14 mm² (Signal line)
AWG signal line26
Conductor structure signal line18x 0.10 mm
Core diameter including insulation1 mm ±0.05 mm (Signal line)
Wire colorswhite, brown, green, yellow, gray, pink, blue, red, black, violet, gray/pink, red/blue
Overall twist12 wires twisted in layers
External sheath, colorblack RAL 9005
External cable diameter D7.2 mm
Number of bending cycles4000000
Bending radius54 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialTin-plated Cu litz wires
Conductor resistance142 Ω/km
Special propertiesLow adhesion surface
Flame resistancein acc. to UL VW1
DIN EN 60332-1-2
Halogen-freein accordance with DIN EN 50267-2-1
Resistance to oilDIN VDE 0472 Part 803, test type B
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
