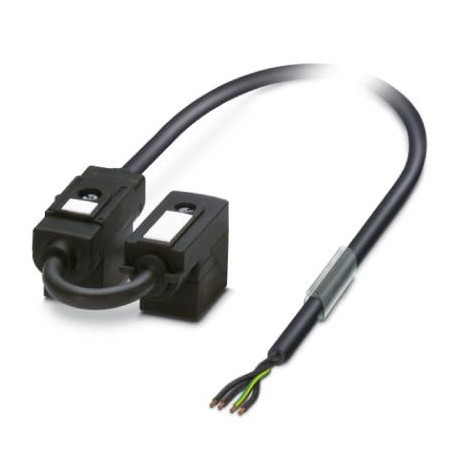

PHOENIX CONTACT SAC-10,0/0,1-116/2XBI-1L-Z SAC-10,0/0,1-116/2XBI-1L-Z 1458376 PHOENIX CONTACT Double valve connector cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-10,0/0,1-116/2XBI-1L-Z 1458376 PHOENIX CONTACT Double valve connector cable

SAC-10,0/0,1-116/2XBI-1L-Z

1458376

PHOENIX CONTACT

1 Pcs.

Double valve connector cable Dual Valve Connector Cable, 4-Pole, Free Cable End, to BI Valve Connectors (11mm), with 1 LED, connected with Z Diode and BI Valve Connectors (11mm), with 1 LED, connected with Z Diode, cable length: 10 m, valve connector distance: 0.1 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1458376
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 249 (C-2-2017)
GTIN4046356638814
Weight per Piece (excluding packing)670.200 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable10 m
Valve connector distance0.1 m
Central screw valve connectorM3 x 29

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (valve plug)
Degree of protectionIP65
IP67

General

Rated current at 40°C4 A
Rated voltage24 V AC
24 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
Status display1 LED
Protective circuit/componentZ diode
Pulse power Wmax40 W (at 100 µs square-wave pulse)
Terminal voltage70 V (at 2 mA constant current)
Reverse voltage50 V
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles50
Torque0.6 Nm (Valve connector)

Material

Flammability rating according to UL 94HB
Valve plug contact materialCuSn
Valve plug contact surface materialSn
Valve plug contact insert materialPA 6.6
Material housing valve plugTPU
Sealing materialTPU (Seal molded)

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typePUR/PVC, 0.75 mm², black
Cable type (abbreviation)116
Cable abbreviationLiYY11Y-HF
UL AWM style20549
Conductor cross section4x 0.75 mm²
AWG signal line18
Conductor structure signal line24x 0.20 mm
Core diameter including insulation1.7 mm ±0.05 mm
Wire colorsBlack 1, black 2, black 3, green/yellow
Overall twist4 wires, twisted
External sheath, colorblack
External cable diameter D6.3 mm ±0.2 mm
Smallest bending radius, fixed installation63 mm
Outer sheath, materialPUR
Material, inner sheathPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 20 MΩ*km
Conductor resistance26 Ω/km (at 20 °C)
Nominal voltage, cable300 V
Test voltage, cable1200 V
Flame resistanceaccording to DIN VDE 0482
According to DIN EN 50265-2-1
in acc. with UL FT-2
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
