View larger
Images are for illustrative purposes only. Please refer to data sheet for details

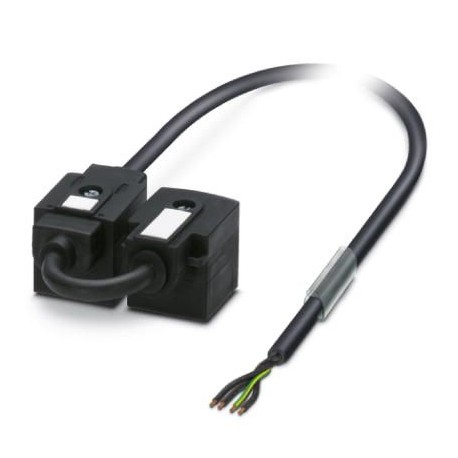

SAC-10,0/0,1-116/2XA-1L-Z 1458017 PHOENIX CONTACT Double valve connector cable
SAC-10,0/0,1-116/2XA-1L-Z
1458017
PHOENIX CONTACT
1 Pcs.
Double valve connector cable
Dual Valve Connector Cable, 4-Pole, Free Cable End, to Valve Connectors A, with 1 LED, connected to Diode Z and Valve Connectors A, with 1 LED, connected to Diode Z, cable length: 10 m, distance from valve connector: 0.1 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1458017 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 249 (C-2-2017) |
| GTIN | 4046356638432 |
| Weight per Piece (excluding packing) | 684.000 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (valve plug) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 24 V AC |
| 24 V DC | |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Standards/regulations | Valve connector EN 175301-803 |
| Status display | 1 LED |
| Protective circuit/component | Z diode |
| Pulse power Wmax | 40 W (at 100 µs square-wave pulse) |
| Terminal voltage | 70 V (at 2 mA constant current) |
| Reverse voltage | 50 V |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | 50 |
| Torque | 0.6 Nm (Valve connector) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Valve plug contact material | CuSn |
| Valve plug contact surface material | Sn |
| Valve plug contact insert material | PA 6.6 |
| Material housing valve plug | TPU |
| Sealing material | TPU (Seal molded) |
Standards and Regulations
| Standard designation | Valve connector |
|---|---|
| Standards/regulations | EN 175301-803 |
| Flammability rating according to UL 94 | HB |
Cable
| Cable type | PUR/PVC, 0.75 mm², black |
|---|---|
| Cable type (abbreviation) | 116 |
| Cable abbreviation | LiYY11Y-HF |
| UL AWM style | 20549 |
| Conductor cross section | 4x 0.75 mm² |
| AWG signal line | 18 |
| Conductor structure signal line | 24x 0.20 mm |
| Core diameter including insulation | 1.7 mm ±0.05 mm |
| Wire colors | Black 1, black 2, black 3, green/yellow |
| Overall twist | 4 wires, twisted |
| External sheath, color | black |
| External cable diameter D | 6.3 mm ±0.2 mm |
| Smallest bending radius, fixed installation | 63 mm |
| Outer sheath, material | PUR |
| Material, inner sheath | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 20 MΩ*km |
| Conductor resistance | 26 Ω/km (at 20 °C) |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 1200 V |
| Flame resistance | according to DIN VDE 0482 |
| According to DIN EN 50265-2-1 | |
| in acc. with UL FT-2 | |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.127060312eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027279218eCl@ss 9.027060312
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Cable length (EF000536) | 10 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Black |
| With LED indication (EF005950) | Yes |
| Screened (EF000881) | No |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -5 °C |
| Rated voltage (EF000228) | 24 V |
| Degree of protection (IP) (EF005474) | IP65 |
