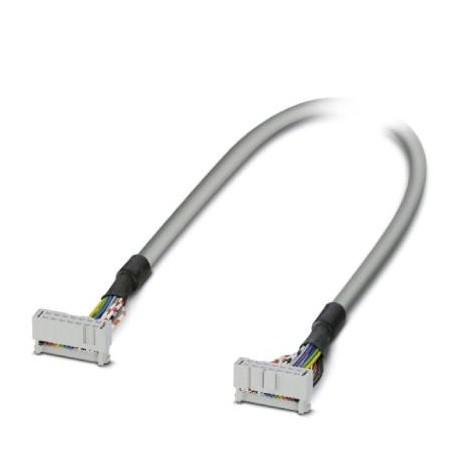

FLK 14/EZ-DR/HF/ 50/KONFEK 2305952 PHOENIX CONTACT Cable

FLK 14/EZ-DR/HF/ 50/KONFEK

2305952

PHOENIX CONTACT

1 Pcs.

Cable Halogen-free round cable; Connection 1: Female IDC/FLK connection (1x 14-poles); Connection 2: IDC/FLK Connection Female (1x 14-pole); Cable length: 0.5 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2305952
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 587 (C-5-2017)
GTIN4046356091718
Weight per Piece (excluding packing)34.100 g
Custom tariff number85444290
Country of originDE (Germany)

General

Nominal voltage UN< 50 V AC
60 V DC
Max. current carrying capacity per path1 A
Max. conductor resistance0.16 Ω/m
Length of cable0.5 m
Single wire, cross section0.14 mm²
Single wire, cross section [AWG]26
Conductor construction: Number of litz wires:7
Single wire, materialCu tin-plated
External diameter6.4 mm
Cable, preassemblyInsulation displacement, IEC 60352-4/DIN EN 60352-4
Shieldingno
Insertion/withdrawal cycles> 50

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-3
DIN VDE 0482 Part 266-2

Connector 1

Connection nameField level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions14
Pitch2.54 mm

Connector 2

Connection nameController level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions14
Pitch2.54 mm

Supported controller

ControllerGE-FANUC 90-30
- suitable I/O cardIC693 ALG220
IC693 ALG221
IC693 ALG222
IC693 ALG223
IC693 ALG390
IC693 ALG391
IC693 ALG392
IC693 ALG442
IC693 MDL241
IC693 MDL634
IC693 MDL645
IC693 MDL646
IC693 MDL732
IC693 MDL733
IC693 MDL740
IC693 MDL741
IC693 MDL742
ControllerSIEMENS S7-300 / ET 200 M
- suitable I/O cardCPU 312C
CPU 313C-2DP
CPU 314C-2PtP
6ES7 321-1BH50-0AA0
6ES7 321-7BH01-0AB0
6ES7 321-1BH02-0AA0
6ES7 321-1BL00-0AA0
6ES7 322-1BH01-0AA0
6ES7 322-8BF00-0AB0
6ES7 322-1BL00-0AA0
6ES7 323-1BH01-0AA0
6ES7 323-1BL00-0AA0
6ES7 331-7KF02-0AB0
6ES7 331-7KB02-0AB0
6ES7 331-7NF00-0AB0
6ES7 331-7PF01-0AB0
6ES7 331-7PF11-0AB0
6ES7 332-5HD01-0AB0
6ES7 332-5HB01-0AB0
6ES7 332-7ND02-0AB0
6ES7 334-0CE01-0AA0
6ES7 334-0KE00-0AB0
6ES7 335-7HG01-0AB0
CPU 314C-2DP
6ES7 338-4BC01-0AB0
6ES7 350-1AH03-0AE0
6ES7 350-2AH01-0AE0
6ES7 351-1AH01-0AE0
6ES7 352-1AH02-0AE0
6ES7 353-1AH01-0AE0
6ES7 354-1AH01-0AE0
6ES7 355-0VH10-0AE0
6ES7 355-1VH10-0AE0
6ES7 357-4AH01-0AE0
6ES7 321-7BH01-0AB0
6ES7 331-7HF01-0AB0
6ES7 321-1BH10-0AA0
6ES7 322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP
ControllerALLEN-BRADLEY ControlLogix
- suitable I/O card1756-IN16
1756-IA8D
1756-IA16
1756-IB16
1756-IC16
1756-OB16E
1756-IF6I
1756-IR6I
1756-IT6I
1756-OF4
1756-OF6CI
1756-OF8
1756-PLS
ControllerALLEN-BRADLEY SLC 500
- suitable I/O card1746 OB16
1746 OV16
1746 OG16
1746 IA16
1746 IB16
1746 ITB16
1746 IN16
1746 IV16
1746 ITV16
1746 IG16
ControllerHONEYWELL Experion PKS C200
- suitable I/O cardTC-IDX 081
TC-IDA 161
TC-IAH 061
TC-IXR 061
TC-IXL 061
TC-OAH 061
TC-OAV 061
TC-OAV 081
ControllerSchneider Electric Modicon TSX QUANTUM
- suitable I/O cardDDI 353
DDI 853
DAI 353
DAI 453
DDO 353

Color code

Connector 1 = connector 2 (optional) = wire colorIDC/FLK14 (1) = IDC/FLK14 (1) = black
IDC/FLK14 (2) = IDC/FLK14 (2) = brown
IDC/FLK14 (3) = IDC/FLK14 (3) = red
IDC/FLK14 (4) = IDC/FLK14 (4) = orange
IDC/FLK14 (5) = IDC/FLK14 (5) = yellow
IDC/FLK14 (6) = IDC/FLK14 (6) = green
IDC/FLK14 (7) = IDC/FLK14 (7) = blue
IDC/FLK14 (8) = IDC/FLK14 (8) = violet
IDC/FLK14 (9) = IDC/FLK14 (9) = gray
IDC/FLK14 (10) = IDC/FLK14 (10) = white
IDC/FLK14 (11) = IDC/FLK14 (11) = white-black
IDC/FLK14 (12) = IDC/FLK14 (12) = white-brown
IDC/FLK14 (13) = IDC/FLK14 (13) = white-red
IDC/FLK14 (14) = IDC/FLK14 (14) = white-orange

Standards and Regulations

Flame resistanceIEC 60332-3
DIN VDE 0482 Part 266-2

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2305952 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 0.5 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 14

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
