CABLE-D37SUB/B/S/200/KONFEK/S 2302227 PHOENIX CONTACT Cable

CABLE-D37SUB/B/S/200/KONFEK/S

2302227

PHOENIX CONTACT

1 Pcs.

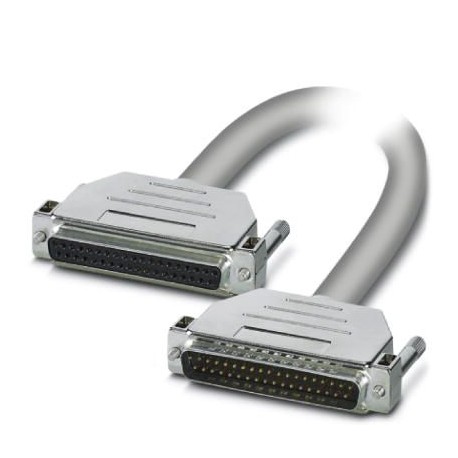

Cable Shielded ready-made round cable; Connection 1: Female connection D-SUB (1x 37-poles); Connection 2: D-SUB Plug (1x 37-pole); Cable length: 2 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2302227
Packing unit1 pc
Catalog pagePage 592 (C-5-2017)
GTIN4017918894757
Weight per Piece (excluding packing)495.000 g
Custom tariff number85444290
Country of originHU (Hungary)

General

Nominal voltage UN25 V AC
60 V DC
Max. current carrying capacity per path2 A
Max. conductor resistance≤ 0.09 Ω/m
Length of cable2 m
Single wire, cross section0.25 mm²
Single wire, cross section [AWG]24
External diameter12.5 mm
Shieldingyes
Tinned copper-braided shield, approx. 85% covering
Insertion/withdrawal cycles> 200

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1

Connector 1

Connection nameField level
Connection methodD-SUB pin strip
Number of connections1
Number of positions37

Connector 2

Connection nameController level
Connection methodD-SUB socket strip
Number of connections1
Number of positions37

Supported controller

Controlleruniversal

Color code

Connector 1 = connector 2 (optional) = wire colorD-SUB37 (1) = D-SUB37 (1) = white
D-SUB37 (2) = D-SUB37 (2) = brown
D-SUB37 (3) = D-SUB37 (3) = green
D-SUB37 (4) = D-SUB37 (4) = yellow
D-SUB37 (5) = D-SUB37 (5) = gray
D-SUB37 (6) = D-SUB37 (6) = pink
D-SUB37 (7) = D-SUB37 (7) = blue
D-SUB37 (8) = D-SUB37 (8) = red
D-SUB37 (9) = D-SUB37 (9) = black
D-SUB37 (10) = D-SUB37 (10) = violet
D-SUB37 (11) = D-SUB37 (11) = gray-pink
D-SUB37 (12) = D-SUB37 (12) = red-blue
D-SUB37 (13) = D-SUB37 (13) = white-green
D-SUB37 (14) = D-SUB37 (14) = brown-green
D-SUB37 (15) = D-SUB37 (15) = white-yellow
D-SUB37 (16) = D-SUB37 (16) = yellow-brown
D-SUB37 (17) = D-SUB37 (17) = white-gray
D-SUB37 (18) = D-SUB37 (18) = gray-brown
D-SUB37 (19) = D-SUB37 (19) = white-pink
D-SUB37 (20) = D-SUB37 (20) = pink-brown
D-SUB37 (21) = D-SUB37 (21) = white-blue
D-SUB37 (22) = D-SUB37 (22) = brown-blue
D-SUB37 (23) = D-SUB37 (23) = white-red
D-SUB37 (24) = D-SUB37 (24) = brown-red
D-SUB37 (25) = D-SUB37 (25) = white-black
D-SUB37 (26) = D-SUB37 (26) = brown-black
D-SUB37 (27) = D-SUB37 (27) = gray-green
D-SUB37 (28) = D-SUB37 (28) = yellow-gray
D-SUB37 (29) = D-SUB37 (29) = pink-green
D-SUB37 (30) = D-SUB37 (30) = yellow-pink
D-SUB37 (31) = D-SUB37 (31) = green-blue
D-SUB37 (32) = D-SUB37 (32) = yellow-blue
D-SUB37 (33) = D-SUB37 (33) = green-red
D-SUB37 (34) = D-SUB37 (34) = yellow-red
D-SUB37 (35) = D-SUB37 (35) = green-black
D-SUB37 (36) = D-SUB37 (36) = yellow-black
D-SUB37 (37) = D-SUB37 (37) = gray-blue

Standards and Regulations

Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Connection in acc. with standardCUL

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2302227 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 2 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 37
