CABLE-D25SUB/B/S/300/KONFEK/S 2302162 PHOENIX CONTACT Cable

CABLE-D25SUB/B/S/300/KONFEK/S

2302162

PHOENIX CONTACT

1 Pcs.

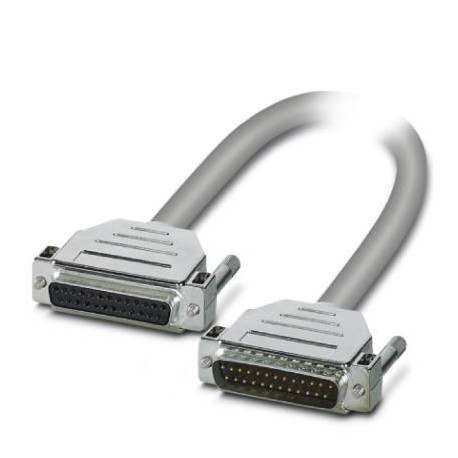

Cable Shielded ready-made round cable; Connection 1: Female connection D-SUB (1x 25-poles); connection 2: D-SUB male connector (1x 25-pole); Cable length: 3 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2302162
Packing unit1 pc
Catalog pagePage 592 (C-5-2017)
GTIN4017918893125
Weight per Piece (excluding packing)532.600 g
Custom tariff number85444290
Country of originHU (Hungary)

General

Nominal voltage UN25 V AC
60 V DC
Max. current carrying capacity per path2 A
Max. conductor resistance≤ 0.09 Ω/m
Length of cable3 m
Single wire, cross section0.25 mm²
Single wire, cross section [AWG]24
External diameter10.5 mm
Shieldingyes
Tinned copper-braided shield, approx. 85% covering
Insertion/withdrawal cycles> 200

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1

Connector 1

Connection nameField level
Connection methodD-SUB pin strip
Number of connections1
Number of positions25

Connector 2

Connection nameController level
Connection methodD-SUB socket strip
Number of connections1
Number of positions25

Supported controller

ControllerABB S800 I/O
- suitable I/O cardDI810
DI811
DI814
DI818
DI830
DI831
DI840
DI885
DO810
DO814
DO818
DO840
DP820
DP840
AI810
AI820
AI830
AI835
AI845
AO810
AO820

Color code

Connector 1 = connector 2 (optional) = wire colorD-SUB25 (1) = D-SUB25 (1) = white
D-SUB25 (2) = D-SUB25 (2) = brown
D-SUB25 (3) = D-SUB25 (3) = green
D-SUB25 (4) = D-SUB25 (4) = yellow
D-SUB25 (5) = D-SUB25 (5) = gray
D-SUB25 (6) = D-SUB25 (6) = pink
D-SUB25 (7) = D-SUB25 (7) = blue
D-SUB25 (8) = D-SUB25 (8) = red
D-SUB25 (9) = D-SUB25 (9) = black
D-SUB25 (10) = D-SUB25 (10) = violet
D-SUB25 (11) = D-SUB25 (11) = gray-pink
D-SUB25 (12) = D-SUB25 (12) = red-blue
D-SUB25 (13) = D-SUB25 (13) = white-green
D-SUB25 (14) = D-SUB25 (14) = brown-green
D-SUB25 (15) = D-SUB25 (15) = white-yellow
D-SUB25 (16) = D-SUB25 (16) = yellow-brown
D-SUB25 (17) = D-SUB25 (17) = white-gray
D-SUB25 (18) = D-SUB25 (18) = gray-brown
D-SUB25 (19) = D-SUB25 (19) = white-pink
D-SUB25 (20) = D-SUB25 (20) = pink-brown
D-SUB25 (21) = D-SUB25 (21) = white-blue
D-SUB25 (22) = D-SUB25 (22) = brown-blue
D-SUB25 (23) = D-SUB25 (23) = white-red
D-SUB25 (24) = D-SUB25 (24) = brown-red
D-SUB25 (25) = D-SUB25 (25) = white-black

Standards and Regulations

Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Connection in acc. with standardCUL

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2302162 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 3 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 25

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
