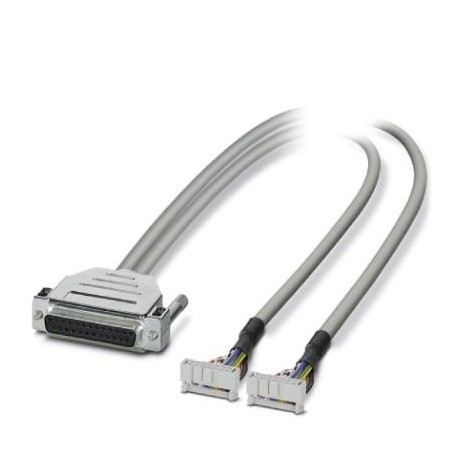

PHOENIX CONTACT CABLE-D25SUB/B/2X14/200/TU812 CABLE-D25SUB/B/2X14/200/TU812 2304652 PHOENIX CONTACT Cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CABLE-D25SUB/B/2X14/200/TU812 2304652 PHOENIX CONTACT Cable

CABLE-D25SUB/B/2X14/200/TU812

2304652

PHOENIX CONTACT

1 Pcs.

Cable Ready-made round cable; control: ABB S800 I/O; Connection 1: Female connection D-SUB (1x 25-poles); Connection 2: Female IDC/FLK connection (2x 14-pole); Cable length: 2 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2304652
Packing unit1 pc
Catalog pagePage 471 (C-5-2017)
GTIN4017918951375
Weight per Piece (excluding packing)276.600 g
Custom tariff number85444290
Country of originDE (Germany)

General

Nominal voltage UN< 50 V AC
60 V DC
Max. current carrying capacity per path1 A
Max. conductor resistance0.16 Ω/m
Length of cable2 m
Single wire, cross section0.14 mm²
Single wire, cross section [AWG]26
Conductor construction: Number of litz wires:7
Single wire, materialCu tin-plated
External diameter6.3 mm
Cable, preassemblyInsulation displacement, IEC 60352-4/DIN EN 60352-4
Shieldingno

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1

Connector 1

Connection nameField level
Connection methodIDC/FLK socket strip
Number of connections2
Number of positions14
Pitch2.54 mm

Connector 2

Connection nameController level
Connection methodD-SUB socket strip
Number of connections1
Number of positions25
Channels which can be connected16

Supported controller

ControllerABB S800 I/O
- suitable I/O cardDI810
DI811
DI814
DI818
DI830
DI831
DI840
DI885
DO810
DO814
DO818
DO840

Color code

Connector 1 = connector 2 (optional) = wire colorD-SUB25 (1) = IDC/FLK14-1 (9) = gray
D-SUB25 (2) = IDC/FLK14-1 (10) = white
D-SUB25 (3) = IDC/FLK14-1 (1) = black
D-SUB25 (4) = IDC/FLK14-1 (3) = red
D-SUB25 (5) = IDC/FLK14-1 (5) = yellow
D-SUB25 (6) = IDC/FLK14-1 (7) = blue
D-SUB25 (7) = IDC/FLK14-2 (1) = black
D-SUB25 (8) = IDC/FLK14-2 (3) = red
D-SUB25 (9) = IDC/FLK14-2 (5) = yellow
D-SUB25 (10) = IDC/FLK14-2 (7) = blue
D-SUB25 (11) = IDC/FLK14-2 (9) = gray
D-SUB25 (12) = IDC/FLK14-2 (10) = white
D-SUB25 (14) = IDC/FLK14-1 (11) = white-black
D-SUB25 (15) = IDC/FLK14-1 (12) = white-brown
D-SUB25 (16) = IDC/FLK14-1 (2) = brown
D-SUB25 (17) = IDC/FLK14-1 (4) = orange
D-SUB25 (18) = IDC/FLK14-1 (6) = green
D-SUB25 (19) = IDC/FLK14-1 (8) = violet
D-SUB25 (20) = IDC/FLK14-2 (2) = brown
D-SUB25 (21) = IDC/FLK14-2 (4) = orange
D-SUB25 (22) = IDC/FLK14-2 (6) = green
D-SUB25 (23) = IDC/FLK14-2 (8) = violet
D-SUB25 (24) = IDC/FLK14-2 (11) = white-black
D-SUB25 (25) = IDC/FLK14-2 (12) = white-brown

Standards and Regulations

Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2304652 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 2 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 25
