CABLE-D 9SUB/B/S/ 50/KONFEK/S 2299987 PHOENIX CONTACT Cable
CABLE-D 9SUB/B/S/ 50/KONFEK/S
2299987
PHOENIX CONTACT
1 Pcs.
Cable

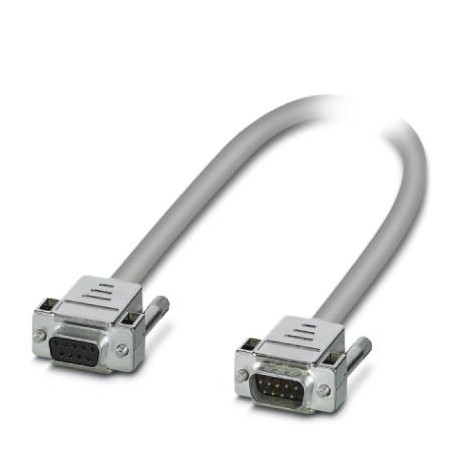

Shielded ready-made round cable; Connection 1: Female connection D-SUB (1x 9-poles); connection 2: D-SUB male connector (1x 9-pole); Cable length: 0.5 m
Cables > PLC connection cable
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2299987 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 592 (C-5-2017) |
| GTIN | 4017918892944 |
| Weight per Piece (excluding packing) | 85.000 g |
| Custom tariff number | 85444290 |
| Country of origin | HU (Hungary) |
General
| Nominal voltage UN | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 2 A |
| Max. conductor resistance | ≤ 0.09 Ω/m |
| Length of cable | 0.5 m |
| Single wire, cross section | 0.25 mm² |
| Single wire, cross section [AWG] | 24 |
| External diameter | 7.5 mm |
| Shielding | yes |
| Tinned copper-braided shield, approx. 85% covering | |
| Insertion/withdrawal cycles | > 200 |
Environmental conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Flame resistance | IEC 60332-1 |
| DIN VDE 0482 Part 332-1 |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 9 |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB socket strip |
| Number of connections | 1 |
| Number of positions | 9 |
Color code
| Connector 1 = connector 2 (optional) = wire color | D-SUB 9 (1) = D-SUB9 (1) = white |
|---|---|
| D-SUB 9 (2) = D-SUB9 (2) = brown | |
| D-SUB 9 (3) = D-SUB9 (3) = green | |
| D-SUB 9 (4) = D-SUB9 (4) = yellow | |
| D-SUB 9 (5) = D-SUB9 (5) = gray | |
| D-SUB 9 (6) = D-SUB9 (6) = pink | |
| D-SUB 9 (7) = D-SUB9 (7) = blue | |
| D-SUB 9 (8) = D-SUB9 (8) = red | |
| D-SUB 9 (9) = D-SUB9 (9) = black |
Standards and Regulations
| Flame resistance | IEC 60332-1 |
|---|---|
| DIN VDE 0482 Part 332-1 | |
| Connection in acc. with standard | CUL |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | PLC - other devices |
| Length (EF001438) | 0.5 m |
| Suitable for input board PLC (EF008271) | Yes |
| Suitable for output card PLC (EF008272) | Yes |
| Suitable for digital signals (EF008273) | Yes |
| Suitable for analogue signals (EF008274) | Yes |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Number of poles (EF001391) | 9 |
