View larger
Images are for illustrative purposes only. Please refer to data sheet for details

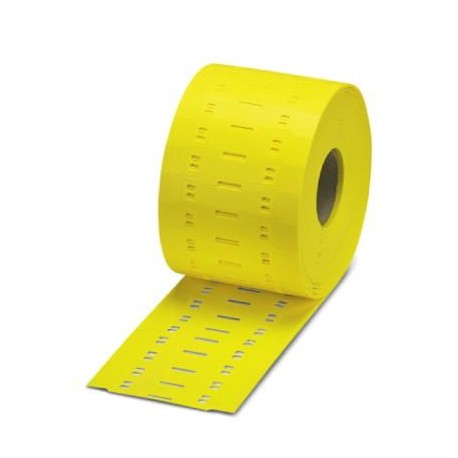

WMTB HF (40X12)R YE CUS 0830414 PHOENIX CONTACT Cable marker
WMTB HF (40X12)R YE CUS
0830414
PHOENIX CONTACT
1 Pcs.
Cable marker
Cable marker, available: lined, yellow, labelled according to customer specifications, mounting type: Mounting with cable tie, cable diameter: ≥ 6 mm, usable area: 40 x 12 mm
Cables > Cable coding system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0830414 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 212 (C-5-2013) |
| GTIN | 4046356716086 |
| Weight per Piece (excluding packing) | 1.990 g |
| Custom tariff number | 49119900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 80 °C |
|---|---|
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | yellow |
|---|---|
| Type | Roll |
| Components | halogen-free |
| Flammability rating according to UL 94 | V0 |
| Material | PUR |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 1000 |
| Number of individual labels per row | 1 |
| Printability | Thermal transfer |
| Device | 5146477 THERMOMARK ROLL |
| 5146723 THERMOMARK ROLL X1 | |
| 5146231 THERMOMARK X1.2 | |
| Ink ribbon | 5148007 THERMOMARK-RIBBON 110-WMTB HF |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Note | The information does not apply to the color fastness of the material. |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | IEC 61010-1:2010-06 |
| Result | Test passed |
| Marking mounting type | Assembly with cable binders |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
