View larger
Images are for illustrative purposes only. Please refer to data sheet for details

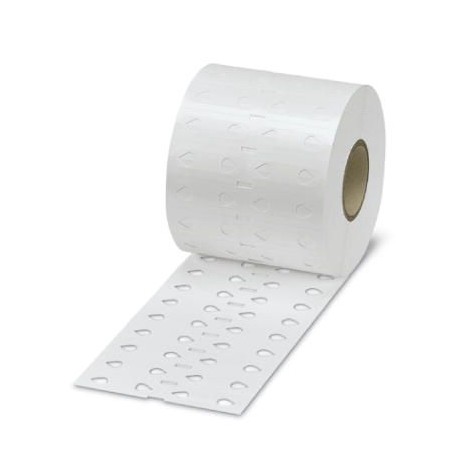

WMT 8,4 (17X10)R CUS 0824931 PHOENIX CONTACT Cable marker
WMT 8,4 (17X10)R CUS
0824931
PHOENIX CONTACT
1 Pcs.
Cable marker
Cable marker, available: by lines, white, labeled according to customer's instructions, mounting class: insert, cable diameter range: 5 ... 8.4 mm, usable surface: 17 mm x 10 mm
Cables > Cable coding system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0824931 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 210 (C-5-2013) |
| GTIN | 4046356358842 |
| Weight per Piece (excluding packing) | 1.990 g |
| Custom tariff number | 49119900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 120 °C |
|---|---|
| Recommended storage conditions | 23 °C / 50 % relative humidity |
General
| Color | white |
|---|---|
| Type | Roll |
| Components | free from silicone and halogen |
| Material | Polyester |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels per row | 2 |
| Printability | Thermal transfer |
| Device | 5146477 THERMOMARK ROLL |
| 5146723 THERMOMARK ROLL X1 | |
| 5146231 THERMOMARK X1.2 | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Foil strength | 175 µm |
| Marking mounting type | thread on |
