View larger
Images are for illustrative purposes only. Please refer to data sheet for details

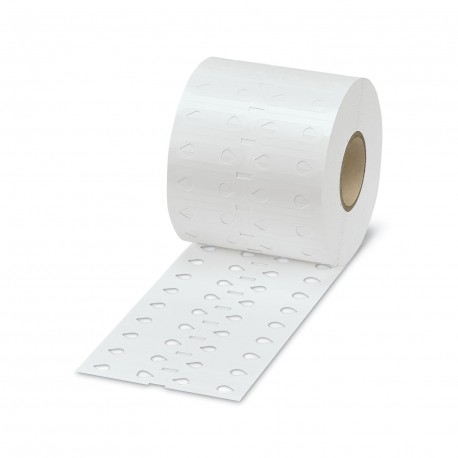

WMT 8,4 (17X10)R 0817251 PHOENIX CONTACT Cable marker
WMT 8,4 (17X10)R
0817251
PHOENIX CONTACT
1 Pcs.
Cable marker
Cable marker, Roll, white, unlabeled, labelable with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting class: slip, cable diameter range: 5 ... 8.4 mm, usable area: 17 mm x 10 mm, Number of individual indexes: 4000
Cable marker, Roll, white, unlabeled, can be labeled with: THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: slide-on, cable diameter range: 5 ... 8.4 mm, Number of individual labels: 4000, text field height: 10 mm, text field width: 17 mm
Cables > Cable coding system
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Conductor marking |
| Type | Roll |
| Data management status | |
| Article revision | 02 |
| Marking | |
| Number of individual labels | 4000 |
| Number of individual labels per row | 2 |
| Identification technology | Thermal transfer for rolls |
Dimensions
| Width | 10 mm |
| Text field width | 17.00 mm |
| Text field height | 10.00 mm |
| Length | 44.4 mm |
| External dimensions | |
| Outside diameter | 5 mm ... 8.4 mm |
Material specifications
| Foil strength | 175 µm |
| Color | white (RAL 9010) |
| Material | Polyester |
| Components | free from silicone and halogen |
Cable/line
| External cable diameter | 5 mm ... 8.4 mm |
Environmental and real-life conditions
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Wipe resistance of inscriptions | |
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
| Testing in a condensation changing climate in the presence of sulfur dioxide | |
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Salt spray test | |
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Recommended storage conditions | 23 °C / 50 % relative humidity |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
| Shelf life | 2 years |
Standards and regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting type | slide-on |
