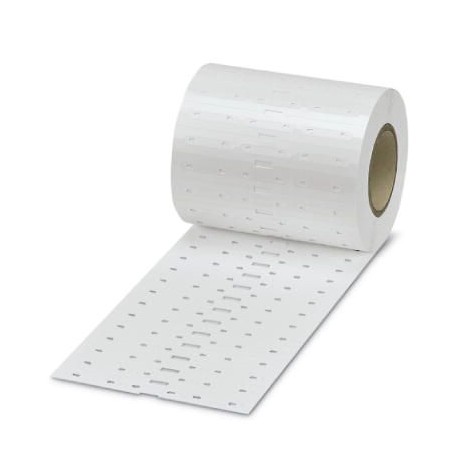

WMT 2,4 (15X4)R 0816281 PHOENIX CONTACT Cable marker
WMT 2,4 (15X4)R
0816281
PHOENIX CONTACT
1 Pcs.
Cable marker
Cable marker, Roll, white, unlabeled, labelable with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting class: slip, cable diameter range: 1 ... 2.4 mm, usable area: 15 x 4.2 mm, Number of individual indexes: 4000
Cables > Cable coding system
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0816281 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 238 (C-3-2017) |
| GTIN | 4046356125680 |
| Weight per Piece (excluding packing) | 550.400 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 120 °C |
|---|---|
| Recommended storage conditions | 23 °C / 50 % relative humidity |
General
| Color | white |
|---|---|
| Type | Roll |
| Components | free from silicone and halogen |
| Material | Polyester |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 4000 |
| Number of individual labels per row | 3 |
| Printability | Thermal transfer |
| Device | 5146477 THERMOMARK ROLL |
| 5146723 THERMOMARK ROLL X1 | |
| 5146231 THERMOMARK X1.2 | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Foil strength | 175 µm |
| Marking mounting type | thread on |
