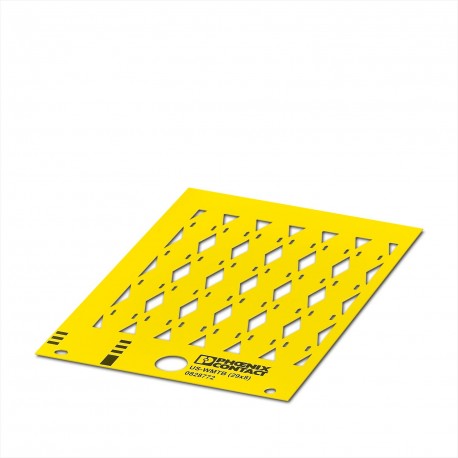

US-WMTB (29X8) YE CUS 0830014 PHOENIX CONTACT Cable marker
US-WMTB (29X8) YE CUS
0830014
PHOENIX CONTACT
1 Pcs.
Cable marker
Cable marker, available: per card, yellow, labelled according to customer specifications, mounting class: Mounting with cable tie, cable diameter: > 13 mm, usable surface: 29x8mm, Number of individual indexes: 24
Cable marker, Card, can be ordered: by card, yellow, labeled according to customer specifications, mounting type: Assembly with cable ties, cable diameter: > 13 mm, Number of individual labels: 24, text field height: 8 mm, text field width: 29 mm
Cables > Cable coding system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Labeled conductor marker |
| Type | Card form |
| Data management status | |
| Article revision | 01 |
| Marking | |
| Number of individual labels | 24 |
| Number of individual labels per row | 6 |
| Identification technology | Thermal transfer for sheets and cards |
Mounting
| Mounting type | Assembly with cable ties |
Material specifications
| Color | yellow (RAL 1018) |
| Material | PVC |
| Flammability rating according to UL 94 | V0 |
| Components | Silicone-free |
Environmental and real-life conditions
| Test for substances that would hinder coating with paint or varnish | |
| Result | Test passed |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 80 °C |
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
| Shelf life | 12 months |
Dimensions
| Width | 16 mm |
| Text field width | 29.00 mm |
| Text field height | 8.00 mm |
| Length | 29 mm |
| External dimensions | |
| Outside diameter | > 13 mm ... 136 mm |
Standards and regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
