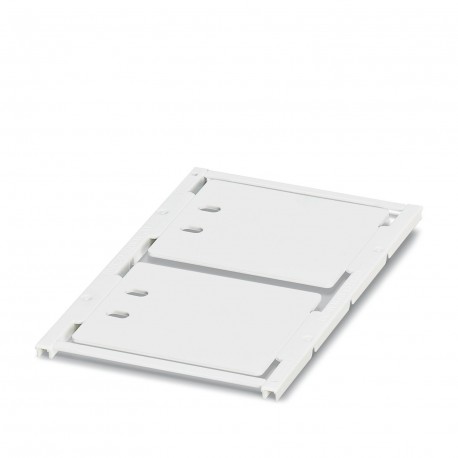

PHOENIX CONTACT UC-WMTB (52X50) UC-WMTB (52X50) 5775289 PHOENIX CONTACT Cable marker View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UC-WMTB (52X50) 5775289 PHOENIX CONTACT Cable marker

UC-WMTB (52X50)

5775289

PHOENIX CONTACT

10 Pcs.

Cable marker Cable marker, Mat, white, unlabeled, labelable with: BLUEMARKIDCOLOR, BLUEMARKIDCOLOR, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: Mounting with cable tie, cable diameter: > 7 mm, useful surface: 52 x 50 mm, Number of individual indexes: 2 Cable marker, Sheet, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: Assembly with cable ties, cable diameter: > 7 mm, Number of individual labels: 2, text field height: 50 mm, text field width: 52 mm

Cables > Cable coding system
MS Material

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeConductor marking
TypeCard form
Data management status
Article revision01
Marking
Number of individual labels2
Number of individual labels per row1
Identification technologyUV LED technology
Min. cross section16 mm²
Dimensions
Width50 mm
Text field width52.00 mm
Text field height50.00 mm
Length52 mm
External dimensions
Outside diameter22 mm ... 136 mm
Material specifications
RoHS compliantyes
Colorwhite (RAL 9010)
MaterialPA
Flammability rating according to UL 94V2
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))120 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 2
Componentsfree from silicone and halogen
Cable/line
External cable diameter> 7.00 mm
Environmental and real-life conditions
Test for substances that would hinder coating with paint or varnish
ResultTest passed
UV resistance
SpecificationISO 4892-2:2013-03 (following)
ResultTest passed
Test duration96 h
Wipe resistance of inscriptions
SpecificationDIN EN 61010-1 (VDE 0411-1):2011-07
DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl
[CAS No. 67-63-0]		Test passed
n-Hexane
[CAS No. 110-54-3]		Test passed
Water + Petroleum ether
[CAS No. 64742-82-1]		Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
SpecificationDIN 50018:2013-05
ResultTest passed
Climate levelAHT 1.0 S
Cycles2
Salt spray test
SpecificationDIN EN 60068-2-11:2000-02
ResultTest passed
Ambient conditions
Ambient temperature (operation)-40 °C ... 120 °C
Recommended storage conditions23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.
Recommended ambient temperature (storage/transport)23 °C
Recommended humidity (storage/transport)50 %
Standards and regulations
Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Mounting
Mounting typeAssembly with cable ties

ETIM for 5775289 Cable terminations and insulation products (EC001530)
Feature Name Feature Value
Model (EF000010) Card shape
Type (EF001139) Medium-walled
Toothing (EF009649) None
Material (EF002169) Plastic
Cable diameter (EF002356) 136 mm
Width (EF000008) 50 mm
Colour (EF000007) White
Fluorescent (EF009518) No
Mounting method (EF000003) Other
