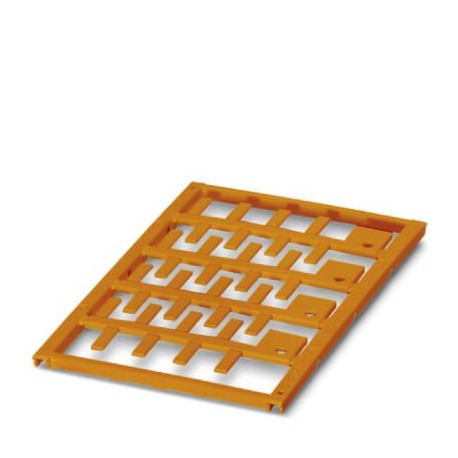

PHOENIX CONTACT UC-WMT (12X4) OG UC-WMT (12X4) OG 0823588 PHOENIX CONTACT Cable marker View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UC-WMT (12X4) OG 0823588 PHOENIX CONTACT Cable marker

UC-WMT (12X4) OG

0823588

PHOENIX CONTACT

10 Pcs.

Cable marker Cable marker, Mat, orange, unlabelled, labelable with: BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting class: introduce, cable diameter range: 0.6 ... 10 mm, usable area: 12 x 4 mm, Number of individual indexes: 32

Cables > Cable coding system
MS Material

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey0823588
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 210 (C-3-2017)
GTIN4046356333351
Weight per Piece (excluding packing)9.760 g
Custom tariff number39269097
Country of originPL (Poland)

Dimensions

Length (b)4 mm
Width (a)12 mm
Cable diameter0.6 mm ... 10 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 120 °C
Recommended storage conditions23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.

General

Colororange
Base element materialPA
TypeCard form
Componentsfree from silicone and halogen
Flammability rating according to UL 94V2
MaterialPA
RoHS compliantYes
Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Number of individual labels32
Number of individual labels per row8
PrintabilityUV LED technology
Device5147999 BLUEMARK CLED
Test for substances that would hinder coating with paint or varnishVW PV 3.10.7:2005-02
ResultTest passed
Test specification weathering-resistanceFollowing ISO 4892-2:2013-03
Test duration96 h
Wipe resistance test resultTest passed
Salt spray test specificationDIN EN 60068-2-11:2000-02
Test duration96 h
Salt spray testing resultTest passed
Wipe resistance of test specification inscriptionsDIN EN 61010-1 (VDE 0411-1):2011-07
ResultTest passed
Marking mounting typeinsert
ResultTest passed
Oxygen index (DIN EN ISO 4589-2)28,2%
Class I3
Class F2
R22HL 1 - HL 2
R23HL 1 - HL 2
R24HL 1 - HL 2

Standards and Regulations

Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Flammability rating according to UL 94V2
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 2
