View larger
Images are for illustrative purposes only. Please refer to data sheet for details

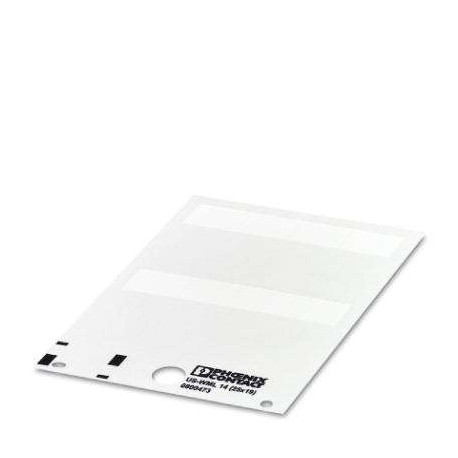

US-WML 14 (25X19) 0800473 PHOENIX CONTACT Cable marker label
US-WML 14 (25X19)
0800473
PHOENIX CONTACT
10 Pcs.
Cable marker label
Cable marker label, Card, white, unlabeled, labelable with: BLUEMARKIDCOLOR, BLUEMARKID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting class: glued, cable diameter range: 6.1 ... 14.2 mm, cable diameter: ≤ 14.2 mm, usable area: 25x19mm, Number of individual indexes: 8
Cables > Cable coding system
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0800473 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 223 (C-3-2017) |
| GTIN | 4046356607056 |
| Weight per Piece (excluding packing) | 5.150 g |
| Custom tariff number | 39199080 |
| Country of origin | DE (Germany) |
General
| Color | white |
|---|---|
| Base element material | Vinyl film |
| Type | Label |
| Components | Silicone-free |
| Material | PVC |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 8 |
| Number of individual labels per row | 4 |
| Adhesive | Acrylic |
| Printability | Thermal transfer |
| Device | 5146464 THERMOMARK CARD |
| 5146451 THERMOMARK CARD-US-MAG1 | |
| Ink ribbon | 0801371 THERMOMARK-RIBBON 110-TC |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN ISO 9227:2012-09 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Burning behaviour | self-extinguishing |
| Foil strength | 0.06 mm |
| Marking mounting type | adhesive |
