View larger
Images are for illustrative purposes only. Please refer to data sheet for details

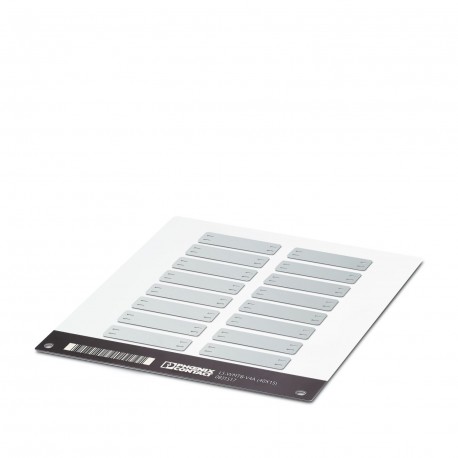

LS-WMTB-V4A (40X15) CUS 0831803 PHOENIX CONTACT Cable marker
LS-WMTB-V4A (40X15) CUS
0831803
PHOENIX CONTACT
1 Pcs.
Cable marker
Cable marker, Stainless steel plate, available: per piece, silver, labelled according to customer specifications, mounting class: Mounting with cable tie, cable diameter: > 4.6 mm, usable area: 40 x 15 mm, Number of individual indexes: 16
Cable marker, stainless steel sign, can be ordered: piecemeal, silver-coloured, labelled according to customer specifications, Mounting type: Cable tie mounting, Cable diameter: > 4.6 mm, Number of individual labels: 16
Cables > Cable coding system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0831803 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 247 (NTK-2014) |
| GTIN | 4046356930123 |
| Weight per Piece (excluding packing) | 120.000 g |
| Custom tariff number | 73269098 |
| Country of origin | DE (Germany) |
General
| Color | silver |
|---|---|
| Type | Card form |
| Components | free from silicone, halogen, and cadmium |
| Material | V4A |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 16 |
| Printability | Direct laser marking |
| Device | 0831831 TOPMARK LASER |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | following DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | Assembly with cable binders |
