View larger
Images are for illustrative purposes only. Please refer to data sheet for details

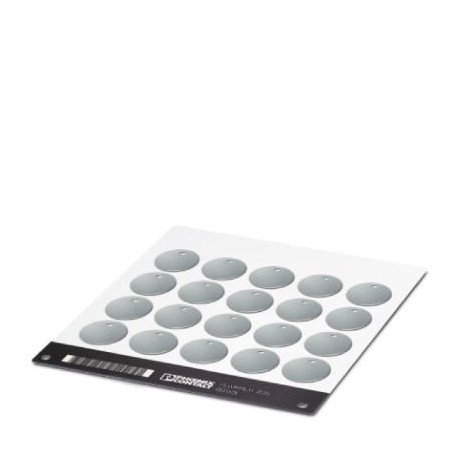

LS-WMTB-AL (D30) CUS 0831791 PHOENIX CONTACT Cable marker
LS-WMTB-AL (D30) CUS
0831791
PHOENIX CONTACT
1 Pcs.
Cable marker
Cable marker, Aluminum plate, available: per piece, aluminum color, labeled according to customer specifications, mounting class: Mounting with cable tie, cable diameter: > 2.9 mm, useful surface: d 30 mm, Number of individual indexes: 20
Cables > Cable coding system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0831791 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 249 (NTK-2014) |
| GTIN | 4046356929943 |
| Weight per Piece (excluding packing) | 84.700 g |
| Custom tariff number | 76169990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 120 °C (At temperatures above 80 °C there might be a slight change to the material surface) |
|---|
General
| Color | aluminum color |
|---|---|
| Type | Card form |
| Components | free from silicone, halogen, and cadmium |
| Material | Aluminum |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 20 |
| Printability | Direct laser marking |
| Device | 0831831 TOPMARK LASER |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Procedure | |
| Test duration | 96 h |
| Note | The information does not apply to the color fastness of the material. |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Procedure | A |
| Test duration | 96 h |
| Note | The information does not apply to the color fastness of the material. |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | Assembly with cable binders |
