View larger
Images are for illustrative purposes only. Please refer to data sheet for details

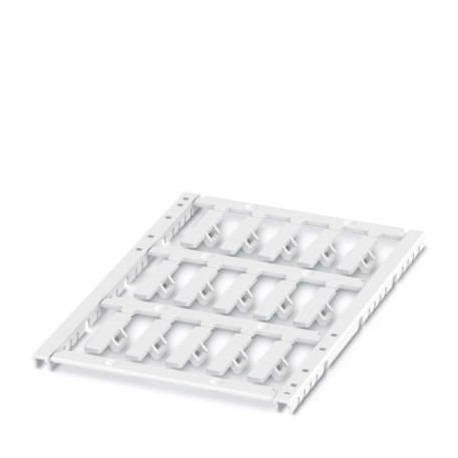

UCT-WMTBA (24X4) CUS 1014088 PHOENIX CONTACT Cable marker
UCT-WMTBA (24X4) CUS
1014088
PHOENIX CONTACT
1 Pcs.
Cable marker
Cable marker, available: by mats, white, labeled according to customer specifications, mounting class: Mounting with cable tie, cable diameter: > 5 mm, usable surface: 25 mm x 6 mm, Number of individual indexes: 15
Cables > Cable coding system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1014088 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 270 (NTK-2014) |
| GTIN | 4046356781404 |
| Weight per Piece (excluding packing) | 8.300 g |
| Custom tariff number | 49119900 |
| Country of origin | DE (Germany) |
General
| Color | white |
|---|---|
| Type | Card form |
| Components | free from silicone, halogen, and cadmium |
| Flammability rating according to UL 94 | V0 |
| Material | PC |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 15 |
| Number of individual labels per row | 5 |
| Printability | Thermal transfer |
| UV LED technology | |
| Device | 5146464 THERMOMARK CARD |
| 5147999 BLUEMARK CLED | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | Assembly with cable binders |
| Result | Test passed |
| Oxygen index (DIN EN ISO 4589-2) | 32.4 % |
| R22 | HL 1 - HL 3 |
| R23 | HL 1 - HL 3 |
| R24 | HL 1 - HL 3 |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Classifications
eCl@ss 4.024190219eCl@ss 4.124190219eCl@ss 5.027149103eCl@ss 5.127400400eCl@ss 6.027400400eCl@ss 7.027400401eCl@ss 8.027400401eCl@ss 9.027400401
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Card shape |
| Type (EF001139) | Medium-walled |
| Toothing (EF009649) | None |
| Material (EF002169) | Other |
| Cable diameter (EF002356) | 136 mm |
| Width (EF000008) | 6 mm |
| Colour (EF000007) | White |
| Fluorescent (EF009518) | No |
| With label space (EF003456) | Yes |
| Mounting method (EF000003) | Other |
