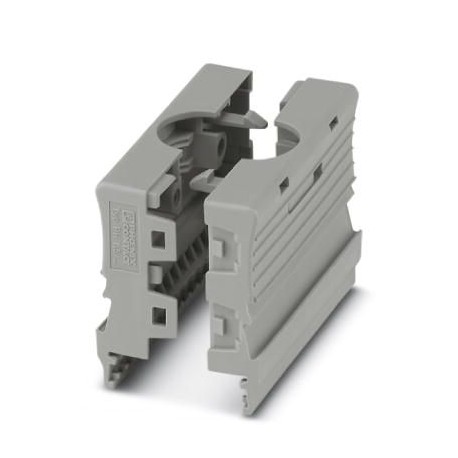

PHOENIX CONTACT PH 1,5/S/14 PH 1,5/S/14 3212866 PHOENIX CONTACT Cable housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PH 1,5/S/14 3212866 PHOENIX CONTACT Cable housing

PH 1,5/S/14

3212866

PHOENIX CONTACT

10 Pcs.

Cable housing Cable housing, pitch: 49 mm, length: 19.9 mm, width: 49 mm, height: 36.8 mm, number of poles: 14, color: gray

Connectors > Housing for rectangular connectors
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3212866
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 366 (C-1-2017)
GTIN4046356573634
Weight per Piece (excluding packing)16.300 g
Custom tariff number39269097
Country of originPL (Poland)

General

Number of positions14
Colorgray
MaterialPA
Flammability rating according to UL 94V0
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width49 mm
Length19.9 mm
Height36.8 mm
Pitch49 mm

Standards and Regulations

Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3212866 Connectors (EC000437)
Feature Name Feature Value
Width (EF000008) 49 mm
Height (EF000040) 19.9 mm
Coating housing (EF001601) Other
Housing colour (EF000136) Grey
Position cable feed (EF008218) Other
With cable screw gland (EF000735) No
Mounting method of the cable gland (EF012210) Other
With hinged lid (EF000117) No
With distance piece (EF005072) No
With sealing (EF005610) No
Operating temperature (EF002393) -60 °C
EMC-version (EF001062) No
