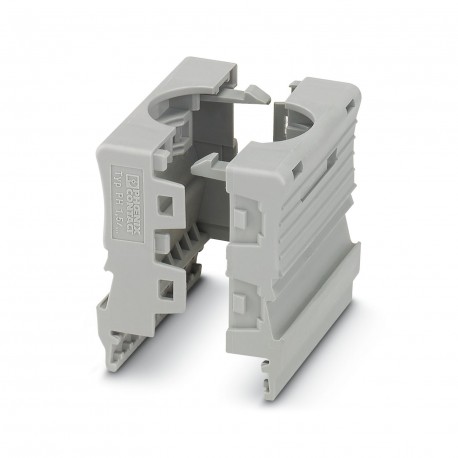

PH 1,5/S/10 3212824 PHOENIX CONTACT Cable housing
PH 1,5/S/10
3212824
PHOENIX CONTACT
25 Pcs.
Cable housing
Cable housing, pitch: 35 mm, length: 19.9 mm, width: 35 mm, height: 36.8 mm, number of poles: 10, colour: grey
Cable housing, pitch: 35 mm, depth: 36.8 mm, width: 35 mm, height: 19.9 mm, number of positions: 10, color: gray
Connectors > Housing for rectangular connectors
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable housing |
| Number of positions | 10 |
| Pitch | 35 mm |
| Data management status | |
| Article revision | 01 |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Dimensions
| Width | 35 mm |
| Height | 19.9 mm |
| Depth | 36.8 mm |
| Pitch | 35 mm |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 35 mm |
| Height (EF000040) | 19.9 mm |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Grey |
| Position cable feed (EF008218) | Other |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Other |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | No |
| Operating temperature (EF002393) | -60 °C |
| EMC-version (EF001062) | No |
