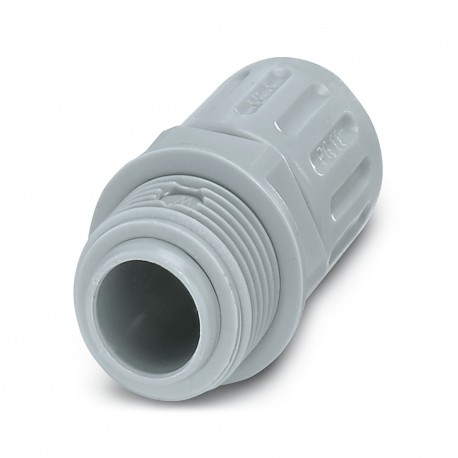

WP-GT PP HF M20 3241012 PHOENIX CONTACT Screw connection
WP-GT PP HF M20
3241012
PHOENIX CONTACT
10 Pcs.
Screw connection
PP cable gland with metric thread, IP54 degree of protection
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3241012 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 639 (C-3-2017) |
| GTIN | 4046356711449 |
| Weight per Piece (excluding packing) | 6.130 g |
| Custom tariff number | 39174000 |
| Country of origin | DE (Germany) |
Dimensions
| Width (a) | 24.5 mm |
|---|---|
| Height (c) | 42 mm |
| Wrench size | 22 mm |
| Outside diameter | 17 mm |
| Cable diameter | 11.5 mm ... 11.5 mm |
General
| Color | gray |
|---|---|
| Type | Rotatable |
| Outer thread | |
| Components | halogen-free |
| Flammability rating according to UL 94 | HB |
| Material | PP |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
