View larger
Images are for illustrative purposes only. Please refer to data sheet for details

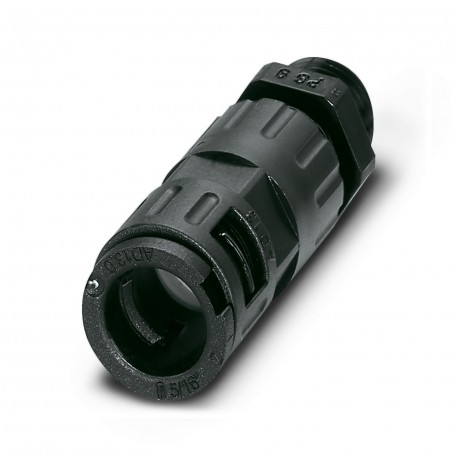

WP-GR HF IP69K PG9 BK 3240931 PHOENIX CONTACT Screw connection
WP-GR HF IP69K PG9 BK
3240931
PHOENIX CONTACT
20 Pcs.
Screw connection
Cable gland, Pg thread, IP68/69k degree of protection, with cable retainer
Cable gland, Pg thread, IP68/69k protection, with strain relief
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Corrugated pipe screw connection |
| Application | Cable gland |
| Type | Outer thread |
| Cable outlet | straight |
| Thread type | Pg |
| Data management status | |
| Article revision | 00 |
Dimensions
| Width | 20 mm |
| Height | 53 mm |
| Wrench size | 18 mm |
| Wrench size for mounting | 18 mm |
| 19 mm |
Material specifications
| Material | PA 6 |
| Flammability rating according to UL 94 | V2 |
| Material for screw connection | PA |
| Components | free from silicone, halogen, and cadmium |
Cable/line
| Halogen-free | yes |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP68 |
| IP69K | |
| Ambient temperature (operation) | -40 °C ... 120 °C |
