View larger
Images are for illustrative purposes only. Please refer to data sheet for details

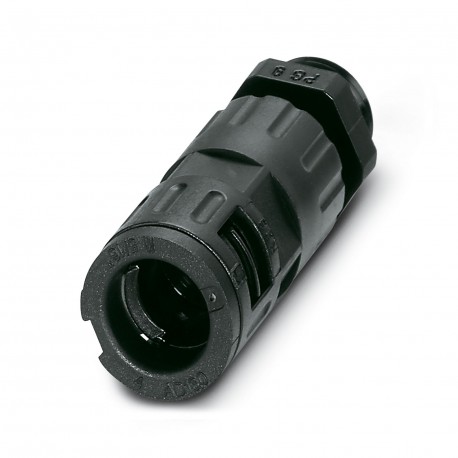

WP-GR HF IP66 PG9 BK 3240945 PHOENIX CONTACT Screw connection
WP-GR HF IP66 PG9 BK
3240945
PHOENIX CONTACT
20 Pcs.
Screw connection
Cable gland, Pg thread, IP66 degree of protection, with cable retainer
Screw connection, Pg thread, IP66 degree of protection, with cable clamp
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240945 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 634 (C-3-2017) |
| GTIN | 4046356710527 |
| Weight per Piece (excluding packing) | 10.420 g |
| Custom tariff number | 39174000 |
| Country of origin | DE (Germany) |
Dimensions
| Width (a) | 20 mm |
|---|---|
| Height (c) | 53 mm |
| Wrench size | 18 mm |
| Outside diameter | 13 mm |
| Cable diameter | 13 mm ... 13 mm |
General
| Color | black |
|---|---|
| Type | With strain relief |
| Outer thread | |
| Components | free from silicone, halogen, and cadmium |
| Flammability rating according to UL 94 | V2 |
| Material | PA |
Standards and Regulations
| Halogen-free | yes |
|---|---|
| Connection in acc. with standard | UL |
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141131eCl@ss 4.127141131eCl@ss 5.027141131eCl@ss 5.127141100eCl@ss 6.027149100eCl@ss 7.027149109eCl@ss 8.027149109eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 13 mm |
| Nominal size in inch (EF005462) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Revolving thread (EF001757) | No |
| Type of connection (EF000064) | Other |
| Thread connection size (EF007834) | PG9 |
| Thread length (EF000368) | 8 mm |
| One-piece (EF001774) | No |
| With integrated holder (EF007952) | No |
| Material screw gland (EF008122) | Polyamide (PA) |
| Max. outer diameter hose (EF002504) | 13 mm |
| Total height (EF001761) | 53 mm |
| Total length (EF000369) | 53 mm |
| Colour (EF000007) | Black |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit UR (EF001763) | No |
