View larger
Images are for illustrative purposes only. Please refer to data sheet for details

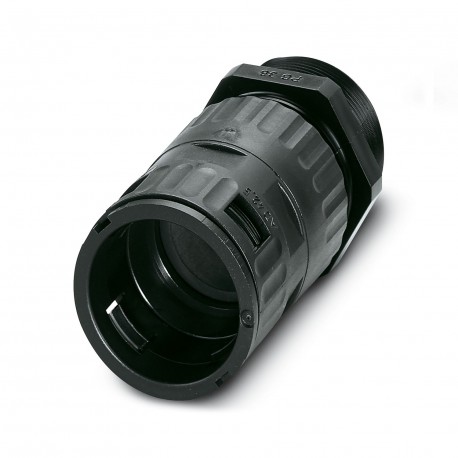

WP-GR HF IP66 PG36 BK 3240950 PHOENIX CONTACT Screw connection
WP-GR HF IP66 PG36 BK
3240950
PHOENIX CONTACT
10 Pcs.
Screw connection
Cable gland, Pg thread, IP66 degree of protection, with cable retainer
Cable gland, Pg thread, IP66 protection, with strain relief
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Corrugated pipe screw connection |
| Application | Cable gland |
| Type of the screw connection | Conduit adapter |
| Type | Outer thread |
| Cable outlet | straight |
| Thread type | Pg |
| Data management status | |
| Article revision | 00 |
Dimensions
| Width | 52 mm |
| Height | 106 mm |
| Wrench size | 49 mm |
| Wrench size for mounting | 49 mm |
| 53 mm | |
| External dimensions | |
| Outside diameter | 36 mm |
Material specifications
| Material | PA 6 |
| Flammability rating according to UL 94 | V2 |
| Material for screw connection | PA |
| Components | free from silicone, halogen, and cadmium |
Cable/line
| Halogen-free | yes |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | Conduit adapter |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 42.5 mm |
| Nominal size in inch (EF005462) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Revolving thread (EF001757) | No |
| Type of connection (EF000064) | Other |
| Thread connection size (EF007834) | PG36 |
| Thread length (EF000368) | 13 mm |
| One-piece (EF001774) | No |
| With integrated holder (EF007952) | No |
| Material screw gland (EF008122) | Polyamide (PA) |
| Max. outer diameter hose (EF002504) | 42.5 mm |
| Total height (EF001761) | 111 mm |
| Total length (EF000369) | 111 mm |
| Colour (EF000007) | Black |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit UR (EF001763) | No |
