> PHOENIX CONTACT > Industrial plug-in connectors/interfaces > 3240953

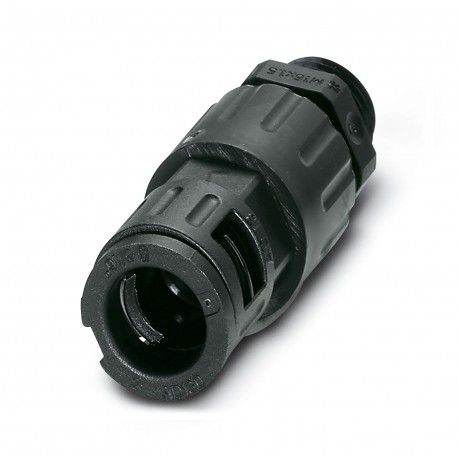

PHOENIX CONTACT WP-GR HF IP66 M16 BK WP-GR HF IP66 M16 BK 3240953 PHOENIX CONTACT Screw connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WP-GR HF IP66 M16 BK 3240953 PHOENIX CONTACT Screw connection

WP-GR HF IP66 M16 BK

3240953

PHOENIX CONTACT

20 Pcs.

Screw connection Cable gland, metric thread, IP66 degree of protection, with cable retainer Cable gland, metric thread, IP66 protection, with strain relief

Cables > Cable gland
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeCorrugated pipe screw connection
ApplicationCable gland
Type of the screw connectionConduit adapter
TypeOuter thread
Cable outletstraight
Thread typemetric
Data management status
Article revision00
Dimensions
Width20 mm
Height53 mm
Wrench size18 mm
Wrench size for mounting18 mm
19 mm
Material specifications
MaterialPA 6
Flammability rating according to UL 94V2
Material for screw connectionPA
Componentsfree from silicone, halogen, and cadmium
Cable/line
Halogen-freeyes
Mechanical properties
Mechanical data
Type of the screw connectionConduit adapter
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP66
Ambient temperature (operation)-40 °C ... 120 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
