View larger
Images are for illustrative purposes only. Please refer to data sheet for details

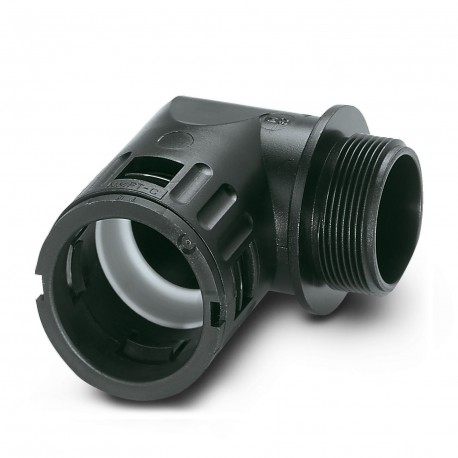

WP-GA HF IP69K M32 BK 3240914 PHOENIX CONTACT Screw connection
WP-GA HF IP69K M32 BK
3240914
PHOENIX CONTACT
10 Pcs.
Screw connection
Cable gland, metric thread, IP68/69k degree of protection, angled
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Corrugated pipe screw connection |
| Application | Cable gland |
| Type of the screw connection | Conduit adapter |
| Type | Outer thread |
| Cable outlet | angled |
| Thread type | metric |
Dimensions
| Width | 44 mm |
| Height | 67.5 mm |
| Length | 65 mm |
| Diameter | 43 mm |
Material specifications
| Material | PA 6 |
| Flammability rating according to UL 94 | V2 |
| Material for screw connection | PA |
| Components | free from silicone, halogen, and cadmium |
Cable/line
| Halogen-free | yes |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | Conduit adapter |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP68 |
| IP69K | |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 34.5 mm |
| Nominal size in inch (EF005462) | Other |
| Degree of protection (IP) (EF005474) | IP68 |
| Revolving thread (EF001757) | No |
| Type of connection (EF000064) | Other |
| Thread connection size (EF007834) | Other |
| Thread length (EF000368) | 15 mm |
| One-piece (EF001774) | No |
| With integrated holder (EF007952) | No |
| Material screw gland (EF008122) | Polyamide (PA) |
| Max. outer diameter hose (EF002504) | 34.5 mm |
| Total height (EF001761) | 65 mm |
| Total length (EF000369) | 65 mm |
| Colour (EF000007) | Black |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit UR (EF001763) | No |
