View larger
Images are for illustrative purposes only. Please refer to data sheet for details

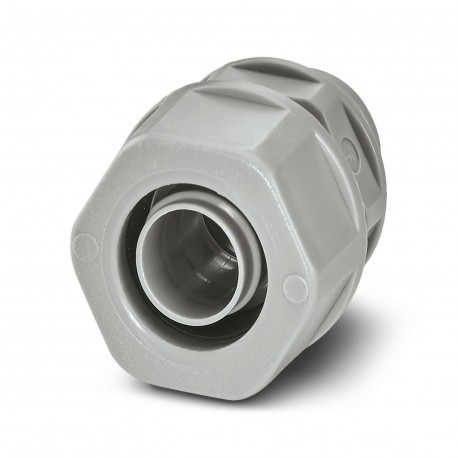

WP-G PP HF PG11 3240990 PHOENIX CONTACT Screw connection
WP-G PP HF PG11
3240990
PHOENIX CONTACT
10 Pcs.
Screw connection
PP cable gland with Pg thread, IP65 degree of protection
Cable gland made from PP with Pg thread, IP65 protection
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Corrugated pipe screw connection |
| Application | Cable gland |
| Type of the screw connection | Conduit adapter |
| Type | Outer thread |
| Cable outlet | straight |
| Thread type | Pg |
| Data management status | |
| Article revision | 00 |
Dimensions
| Width | 30 mm |
| Height | 41 mm |
| Wrench size | 24 mm |
| Wrench size for mounting | 24 mm |
| 27 mm |
Material specifications
| Material | PP |
| Flammability rating according to UL 94 | HB |
| Material for screw connection | PP |
| Components | halogen-free |
Cable/line
| Halogen-free | yes |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | Conduit adapter |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -10 °C ... 110 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 17 mm |
| Nominal size in inch (EF005462) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
| Revolving thread (EF001757) | No |
| Type of connection (EF000064) | Other |
| Thread connection size (EF007834) | PG11 |
| Thread length (EF000368) | 10 mm |
| One-piece (EF001774) | No |
| With integrated holder (EF007952) | No |
| Material screw gland (EF008122) | Polypropylene (PP) |
| Max. outer diameter hose (EF002504) | 17 mm |
| Total height (EF001761) | 41 mm |
| Total length (EF000369) | 41 mm |
| Colour (EF000007) | Grey |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit UR (EF001763) | No |
