View larger
Images are for illustrative purposes only. Please refer to data sheet for details

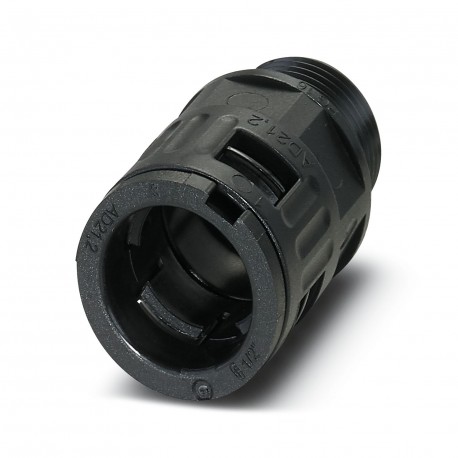

WP-G HF IP66 PG16 BK 3240891 PHOENIX CONTACT Screw connection
WP-G HF IP66 PG16 BK
3240891
PHOENIX CONTACT
50 Pcs.
Screw connection
Cable gland, Pg thread, IP66 degree of protection, straight
Cable gland, Pg thread, protection class IP66, straight
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240891 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 630 (C-3-2017) |
| GTIN | 4046356709989 |
| Weight per Piece (excluding packing) | 11.960 g |
| Custom tariff number | 39174000 |
| Country of origin | DE (Germany) |
Dimensions
| Width (a) | 29.5 mm |
|---|---|
| Height (c) | 46 mm |
| Wrench size | 27 mm |
| Outside diameter | 21.2 mm |
| Cable diameter | 21.2 mm ... 21.2 mm |
General
| Color | black |
|---|---|
| Type | Straight |
| Outer thread | |
| Components | free from silicone, halogen, and cadmium |
| Flammability rating according to UL 94 | V2 |
| Material | PA |
Standards and Regulations
| Halogen-free | yes |
|---|---|
| Connection in acc. with standard | UL |
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141131eCl@ss 4.127141131eCl@ss 5.027141131eCl@ss 5.127141100eCl@ss 6.027149100eCl@ss 7.027149109eCl@ss 8.027149109eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 21.2 mm |
| Nominal size in inch (EF005462) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Revolving thread (EF001757) | No |
| Type of connection (EF000064) | Other |
| Thread connection size (EF007834) | PG16 |
| Thread length (EF000368) | 13 mm |
| One-piece (EF001774) | No |
| With integrated holder (EF007952) | No |
| Material screw gland (EF008122) | Polyamide (PA) |
| Max. outer diameter hose (EF002504) | 21.2 mm |
| Total height (EF001761) | 46 mm |
| Total length (EF000369) | 46 mm |
| Colour (EF000007) | Black |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit UR (EF001763) | No |
