View larger
Images are for illustrative purposes only. Please refer to data sheet for details

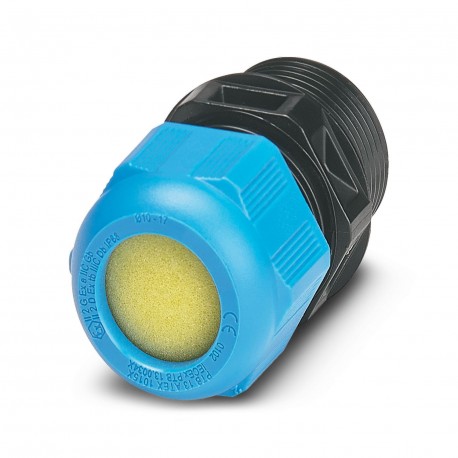

G-ESIS-M16-S68L-PEPDS-BL 1415116 PHOENIX CONTACT Cable gland
G-ESIS-M16-S68L-PEPDS-BL
1415116
PHOENIX CONTACT
10 Pcs.
Cable gland
Cable gland, screwed connection material: PA, application: Ex, outer diameter of the cable 4.5 mm ... 9 mm, shielding: no, connection thread: M16 x 1.5, color: black/blue, with flat gasket
Cable gland, material for screw connection: PA, application: Ex, external cable diameter 4.5 mm ... 9 mm, shielding: no, connecting thread: M16 x 1.5, color: black/blue, with flat gasket
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable screw gland |
| Application | Ex |
| No. of conductors | 1 |
| Manufacturer | WISKA |
| Manufacturer Designation | ESKE/1-L-i 16 |
| Shielded | no |
| Data management status | |
| Article revision | 00 |
Ex data
| Cable types that can be used | for unarmored cables |
| Suited for EX-applications | yes |
Dimensions
| Dimensional drawing |  |
| Length | 37 mm |
| Length of the connecting thread | 15 mm |
| Hole diameter | 16.1 mm ... 16.3 mm |
| Wrench size, union nut | 20 mm |
| Wrench size, support | 20 mm |
| Hexagon angular dimension | 23 mm |
| Thread type connection side | M16 x 1.5 |
| Thread pitch | 1.5 mm |
Connection data
| Tightening torque | 1.8 Nm (Support sleeve) |
Material specifications
| Material Screw connection | PA (Screw connection, halogen-free) |
| Seal material Cable seal | EPDM |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 750 |
| Material for screw connection | PA |
Cable/line
| External cable diameter | 4.5 mm ... 9 mm |
| Halogen-free | yes |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (5 bar / 0.5 h) | |
| Ambient temperature (operation) | -40 °C ... 75 °C (static) |
Approvals
| ATEX | II 2 G Ex e IIC Gb, II 2 D Ex tb IIIC Db |
| IECEx | Ex e IIC Gb, Ex tb IIIC Db |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 15 mm |
| Wrench width (EF000177) | 20 mm |
| Suitable for cable diameter (EF005466) | 4.5 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | Yes |
| Degree of protection (IP) (EF005474) | IP66 |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Flat cable coupling (EF004685) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | Yes |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
