View larger
Images are for illustrative purposes only. Please refer to data sheet for details

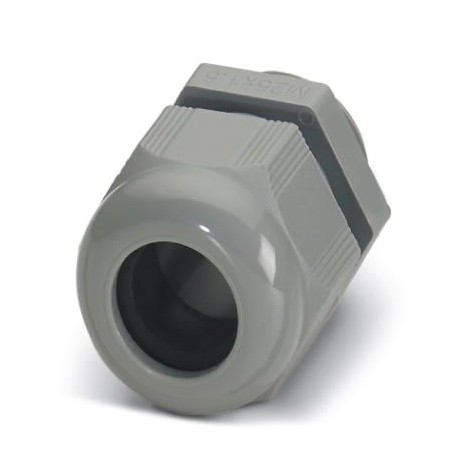

G-INS-N1/2-S68L-PNES-GY 1411153 PHOENIX CONTACT Cable gland
G-INS-N1/2-S68L-PNES-GY
1411153
PHOENIX CONTACT
10 Pcs.
Cable gland
Cable gland, screw connection material: PA, outer diameter of the cable 10 mm ... 14 mm, shielding: no, connection thread: 1/2 in. NPT, color: silver gray RAL 7001
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1411153 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 683 (C-4-2015) |
| GTIN | 4046356922883 |
| Weight per Piece (excluding packing) | 14.980 g |
| Custom tariff number | 39269097 |
| Country of origin | TR (Turkey) |
Dimensions
| Length | 47 mm |
|---|---|
| Wrench size, union nut | 27 mm |
| Wrench size, support | 27 mm |
| Hexagon angular dimension | 30.8 mm |
| Length of the connecting thread | 15 mm |
| External cable diameter | 10 mm ... 14 mm |
| 10 mm ... 14 mm (for UL 514 B) |
Ambient conditions
| Degree of protection (IP) | IP68 (5 bar / 0.5 h) |
|---|---|
| IP66 | |
| Ambient temperature (operation) | -20 °C ... 100 °C (static) |
General
| No. of conductors | 1 |
|---|---|
| Cable gland material | PA |
| Cable seal material | Neoprene |
| Flammability rating according to UL 94 | V2 |
| V2 (Housing) | |
| Shielded | no |
| Thread type connection side | 1/2 inch NPT |
| Thread type on connection side | 1/2 inch NPT |
| Torque | 2 Nm (Union nut: EN 62444) |
| 2 Nm (Support: EN 62444) | |
| 9 Nm (for UL514 B: union nut) | |
| Color | silver-gray RAL 7001 |
| Assembly instructions | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Manufacturer | BIMED |
| Manufacturer Designation | BSPC-02 |
Standards and Regulations
| Halogen-free | no |
|---|---|
| Connection in acc. with standard | CSA |
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | NPT |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 15 mm |
| Wrench width (EF000177) | 27 mm |
| Hexagon angular dimension (EF005268) | 30.8 mm |
| Suitable for cable diameter (EF005466) | 10 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP68 |
| Colour (EF000007) | Grey |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
