View larger
Images are for illustrative purposes only. Please refer to data sheet for details

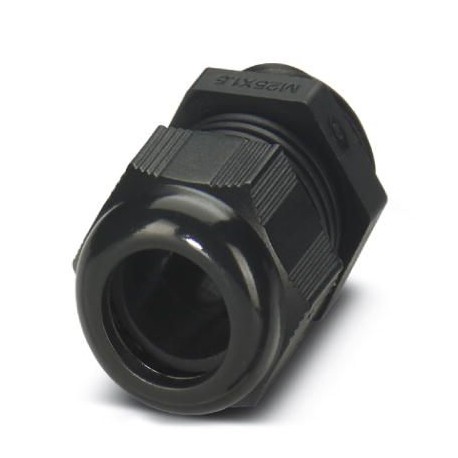

G-INS-N1-M68L-PNES-BK 1411159 PHOENIX CONTACT Cable gland
G-INS-N1-M68L-PNES-BK
1411159
PHOENIX CONTACT
5 Pcs.
Cable gland
Cable gland, screwed connection material: PA, outer diameter of the cable 18 mm ... 25 mm, shielding: no, connection thread: 1"-NPT, colour: deep black RAL 9005
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1411159 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 684 (C-4-2015) |
| GTIN | 4046356922951 |
| Weight per Piece (excluding packing) | 41.000 g |
| Custom tariff number | 39269097 |
| Country of origin | TR (Turkey) |
Dimensions
| Length | 58 mm |
|---|---|
| Wrench size, union nut | 42 mm |
| Wrench size, support | 42 mm |
| Hexagon angular dimension | 48 mm |
| Length of the connecting thread | 18 mm |
| External cable diameter | 18 mm ... 25 mm |
| 18 mm ... 25 mm (for UL 514 B) |
Ambient conditions
| Degree of protection (IP) | IP68 (5 bar / 0.5 h) |
|---|---|
| IP66 | |
| Ambient temperature (operation) | -20 °C ... 100 °C (static) |
General
| No. of conductors | 1 |
|---|---|
| Cable gland material | PA |
| Cable seal material | Neoprene |
| Flammability rating according to UL 94 | V2 |
| V2 (Housing) | |
| Shielded | no |
| Thread type connection side | 1 inch NPT |
| Thread type on connection side | 1 inch NPT |
| Torque | 4 Nm (Union nut: EN 62444) |
| 4 Nm (Support: EN 62444) | |
| 15.8 Nm (for UL514 B: union nut) | |
| Color | jet black RAL 9005 |
| Assembly instructions | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Manufacturer | BIMED |
| Manufacturer Designation | BSP-24 |
Standards and Regulations
| Halogen-free | no |
|---|---|
| Connection in acc. with standard | CSA |
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | NPT |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 18 mm |
| Wrench width (EF000177) | 42 mm |
| Hexagon angular dimension (EF005268) | 48 mm |
| Suitable for cable diameter (EF005466) | 18 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP68 |
| Colour (EF000007) | Black |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
