View larger
Images are for illustrative purposes only. Please refer to data sheet for details

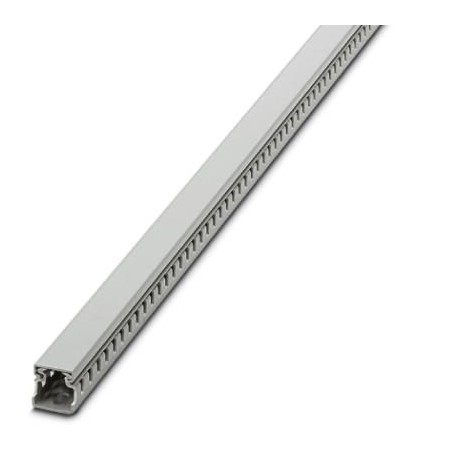

CD-HF 25X25 3240340 PHOENIX CONTACT Cable duct
CD-HF 25X25
3240340
PHOENIX CONTACT
24 Pcs.
Cable duct
Wiring channel for installation and installation in control cabinets, light grey, halogen-free, top and bottom, width: 25 mm, height: 25 mm, length: 2000 mm
Cables > Slotted cable trunking system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240340 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| Catalog page | Page 623 (C-3-2017) |
| GTIN | 4046356507257 |
| Weight per Piece (excluding packing) | 480.000 g |
| Custom tariff number | 39259020 |
| Country of origin | DE (Germany) |
General
| Color | light grey RAL 7035 |
|---|---|
| 7035 | |
| Components | halogen-free |
| Flammability rating according to UL 94 | V0 |
| Material | PC/ABS |
| Result | Test passed |
| R22 | HL 1 - HL 3 |
| R23 | HL 1 - HL 3 |
| Nominal cross section | 220 mm² |
Standards and Regulations
| Halogen-free | yes |
|---|---|
| Connection in acc. with standard | CSA |
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
