View larger
Images are for illustrative purposes only. Please refer to data sheet for details

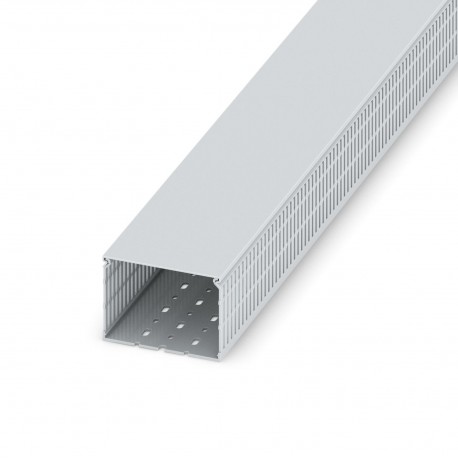

CD-HF 120X80 3240366 PHOENIX CONTACT Cable duct
CD-HF 120X80
3240366
PHOENIX CONTACT
8 Pcs.
Cable duct
Wiring channel for installation and installation in control cabinets, light grey, halogen-free, top and bottom, width: 120 mm, height: 80 mm, length: 2000 mm
Cables > Slotted cable trunking system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240366 |
|---|---|
| Packing unit | 4 pc |
| Minimum order quantity | 8 pc |
| Catalog page | Page 623 (C-3-2017) |
| GTIN | 4046356508513 |
| Weight per Piece (excluding packing) | 2,687.500 g |
| Custom tariff number | 39259020 |
| Country of origin | DE (Germany) |
General
| Color | light grey RAL 7035 |
|---|---|
| 7035 | |
| Components | halogen-free |
| Flammability rating according to UL 94 | V0 |
| Material | PC/ABS |
| Nominal cross section | 6737 mm² |
Standards and Regulations
| Halogen-free | yes |
|---|---|
| Connection in acc. with standard | CSA |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140602eCl@ss 4.127140602eCl@ss 5.027140602eCl@ss 5.127140600eCl@ss 6.027400700eCl@ss 7.027400703eCl@ss 8.027400703eCl@ss 9.027400703
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 80 mm |
| Width (EF000008) | 120 mm |
| Length (EF001438) | 2000 mm |
| Distance of slots (EF005246) | 6.5 mm |
| Slit width (EF005247) | 6 mm |
| Type of side wall (EF000098) | Slotted |
| Halogen free (EF000025) | Yes |
| Self-extinguishing (EF000681) | No |
| Flexible (EF000083) | No |
| With cover (EF007965) | No |
| Colour (EF000007) | Other |
