View larger
Images are for illustrative purposes only. Please refer to data sheet for details

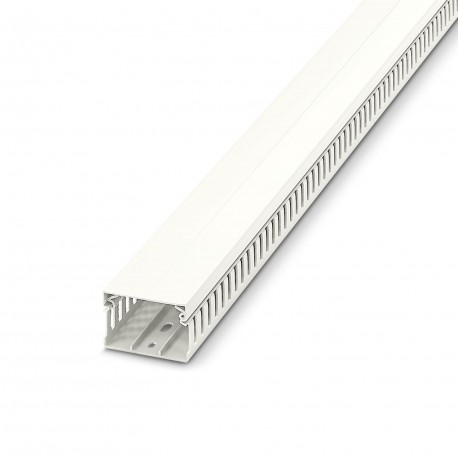

CD 60X40 WH 3240628 PHOENIX CONTACT Cable duct
CD 60X40 WH
3240628
PHOENIX CONTACT
20 Pcs.
Cable duct
Wiring channel for installation and installation in control cabinets, white, top and bottom, width: 60 mm, height: 40 mm, length: 2000 mm
Cable duct for installation and mounting in control cabinets, white, comprising upper part and mounting base, width: 60 mm, height: 40 mm, length: 2000 mm
Cables > Slotted cable trunking system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Wiring duct |
| Data management status | |
| Article revision | 01 |
Connection data
| Nominal cross section | 1155 mm² |
Dimensions
| Dimensional drawing |  |
| Width | 60 mm |
| Height | 2000 mm |
| Depth | 40 mm |
| Length | 2000 mm |
Material specifications
| Color | white (RAL 9010) |
| Material | PVC |
| Flammability rating according to UL 94 | V0 |
| Components | Lead-free |
Cable/line
| Halogen-free | no |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
