View larger
Images are for illustrative purposes only. Please refer to data sheet for details

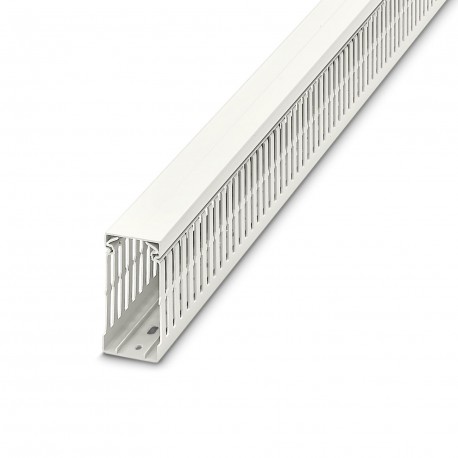

CD 40X80 WH 3240626 PHOENIX CONTACT Cable duct
CD 40X80 WH
3240626
PHOENIX CONTACT
16 Pcs.
Cable duct
Wiring channel for installation and installation in control cabinets, white, top and bottom form, width: 40 mm, height: 80 mm, length: 2000 mm
Cable duct for installation and mounting in control cabinets, white, comprising upper part and mounting base, width: 40 mm, height: 80 mm, length: 2000 mm
Cables > Slotted cable trunking system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240626 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 625 (C-3-2017) |
| GTIN | 4046356629423 |
| Weight per Piece (excluding packing) | 950.000 g |
| Custom tariff number | 39259020 |
| Country of origin | DE (Germany) |
General
| Color | white |
|---|---|
| 9010 | |
| Components | Lead-free |
| Flammability rating according to UL 94 | V0 |
| Material | PVC |
| Nominal cross section | 2071 mm² |
Standards and Regulations
| Halogen-free | no |
|---|---|
| Connection in acc. with standard | CSA |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140602eCl@ss 4.127140602eCl@ss 5.027140602eCl@ss 5.127140600eCl@ss 6.027400700eCl@ss 7.027400703eCl@ss 8.027400703eCl@ss 9.027400703
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 80 mm |
| Width (EF000008) | 40 mm |
| Length (EF001438) | 2000 mm |
| Distance of slots (EF005246) | 6.5 mm |
| Slit width (EF005247) | 6 mm |
| Type of side wall (EF000098) | Slotted |
| Halogen free (EF000025) | No |
| Self-extinguishing (EF000681) | No |
| Flexible (EF000083) | No |
| With cover (EF007965) | No |
| Colour (EF000007) | White |
