View larger
Images are for illustrative purposes only. Please refer to data sheet for details

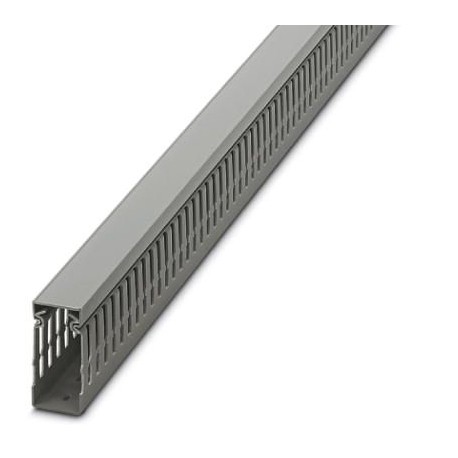

CD 30X60 3240280 PHOENIX CONTACT Cable duct
CD 30X60
3240280
PHOENIX CONTACT
26 Pcs.
Cable duct
Wiring channel for installation and installation in control cabinets, grey, top and bottom, width: 30 mm, height: 60 mm, length: 2000 mm
Cables > Slotted cable trunking system
Cable duct
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240280 |
|---|---|
| Packing unit | 24 pc |
| Minimum order quantity | 24 pc |
| Catalog page | Page 625 (C-3-2017) |
| GTIN | 4046356470094 |
| Weight per Piece (excluding packing) | 760.000 g |
| Custom tariff number | 39259020 |
| Country of origin | DE (Germany) |
General
| Color | gray |
|---|---|
| 7030 | |
| Components | Lead-free |
| Flammability rating according to UL 94 | V0 |
| Material | PVC |
| Nominal cross section | 1060 mm² |
Standards and Regulations
| Halogen-free | no |
|---|---|
| Connection in acc. with standard | CSA |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140602eCl@ss 4.127140602eCl@ss 5.027140602eCl@ss 5.127140600eCl@ss 6.027400700eCl@ss 7.027400703eCl@ss 8.027400703eCl@ss 9.027400703
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 30 mm |
| Length (EF001438) | 2000 mm |
| Distance of slots (EF005246) | 6.5 mm |
| Slit width (EF005247) | 6 mm |
| Type of side wall (EF000098) | Slotted |
| Halogen free (EF000025) | No |
| Self-extinguishing (EF000681) | No |
| Flexible (EF000083) | No |
| With cover (EF007965) | No |
| Colour (EF000007) | Grey |
