View larger
Images are for illustrative purposes only. Please refer to data sheet for details

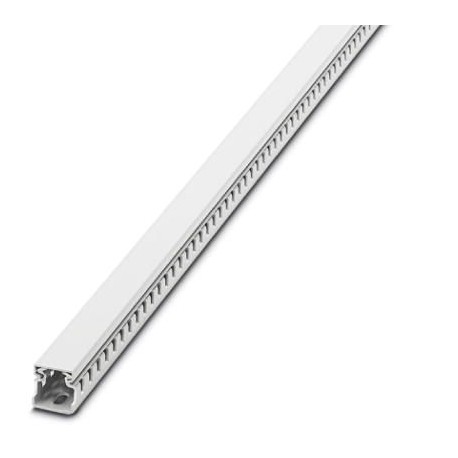

CD 25X25 WH 3240616 PHOENIX CONTACT Cable duct
CD 25X25 WH
3240616
PHOENIX CONTACT
25 Pcs.
Cable duct
Wiring channel for installation and installation in control cabinets, white, top and bottom, width: 25 mm, height: 25 mm, length: 2000 mm
Cables > Slotted cable trunking system
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240616 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 625 (C-3-2017) |
| GTIN | 4046356629126 |
| Weight per Piece (excluding packing) | 494.000 g |
| Custom tariff number | 39259020 |
| Country of origin | DE (Germany) |
General
| Color | white |
|---|---|
| 9010 | |
| Components | Lead-free |
| Flammability rating according to UL 94 | V0 |
| Material | PVC |
| Nominal cross section | 220 mm² |
Standards and Regulations
| Halogen-free | no |
|---|---|
| Connection in acc. with standard | CSA |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
