View larger
Images are for illustrative purposes only. Please refer to data sheet for details

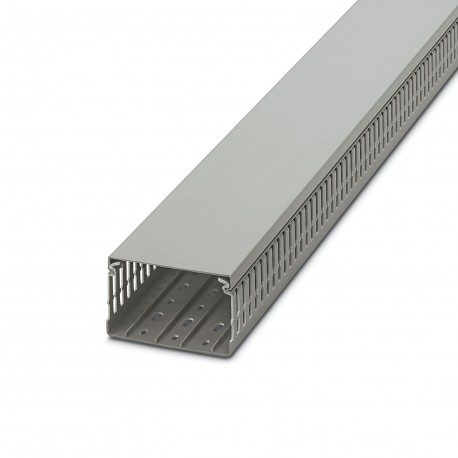

CD 100X60 3240195 PHOENIX CONTACT Cable duct
CD 100X60
3240195
PHOENIX CONTACT
8 Pcs.
Cable duct
Wiring channel for installation and assembly in control cabinets, grey, formed by upper and lower part, width: 100 mm, height: 60 mm, length: 2000 mm
Cables > Slotted cable trunking system
Cable duct
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240195 |
|---|---|
| Packing unit | 8 pc |
| Minimum order quantity | 8 pc |
| Catalog page | Page 625 (C-3-2017) |
| GTIN | 4046356459228 |
| Weight per Piece (excluding packing) | 1,750.000 g |
| Custom tariff number | 39259020 |
| Country of origin | DE (Germany) |
General
| Color | gray |
|---|---|
| 7030 | |
| Components | Lead-free |
| Flammability rating according to UL 94 | V0 |
| Material | PVC |
| Nominal cross section | 3746 mm² |
Standards and Regulations
| Halogen-free | no |
|---|---|
| Connection in acc. with standard | CSA |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
