View larger
Images are for illustrative purposes only. Please refer to data sheet for details

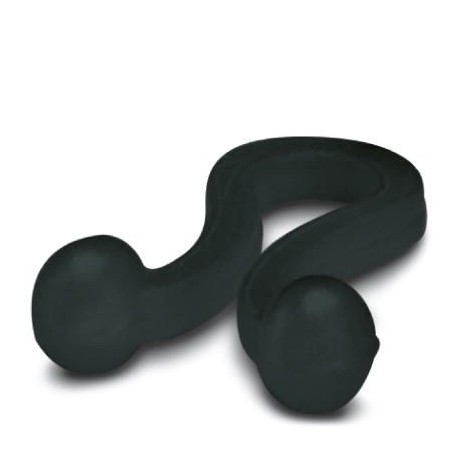

WG-D HF 7,6 BK 3241100 PHOENIX CONTACT Cable driller
WG-D HF 7,6 BK
3241100
PHOENIX CONTACT
1000 Pcs.
Cable driller
Cable attachment for quick and tool-free bundling of lines and conductors, can be disassembled and used again
Cables > Cable tie
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3241100 |
|---|---|
| Packing unit | 500 pc |
| Minimum order quantity | 1000 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 667 (C-3-2017) |
| GTIN | 4046356717298 |
| Weight per Piece (excluding packing) | 0.320 g |
| Custom tariff number | 39269097 |
| Country of origin | TW (Taiwan) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (assembly) | -10 °C ... 60 °C |
| Optimum ambient temperature (storage/transport) | 23 °C 50 % Polyamide 6.6 has pronounced hygroscopic properties. It absorbs or releases water in accordance with the level of humidity within its environment. Its properties are ideal when the percentage of water is 2 - 3%. The packaging, which is tailored specifically to the product concerned, contains the optimum level of moisture.To ensure that the ideal properties are maintained, the following points should be observed during storage: Keep product stored inside sealed original packaging, carry out any product processing soon after breaking open the packaging, avoid direct sunlight, avoid direct heat. |
General
| Color | black |
|---|---|
| Type | Notched strip |
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | V2 |
| Material | PA 6.6 |
| Tensile strength | 0 N |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140702eCl@ss 4.127140702eCl@ss 5.027140702eCl@ss 5.127140700eCl@ss 6.027140700eCl@ss 7.027140702eCl@ss 8.027140702eCl@ss 9.027140702
| Feature Name | Feature Value |
|---|---|
| Length belt/tape/tie (EF000063) | 22.9 mm |
| Tie thickness (EF004499) | 2 mm |
| Operating temperature (EF002393) | -10 °C |
| Mounting temperature (EF008326) | -10 °C |
| Band closure (EF007673) | Double lock head |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Untreated |
| UV-stable according to ASTM D6779 (EF008099) | No |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Black |
| Transparent (EF006243) | No |
| Text strip (EF000129) | None |
| Releasable closure (EF004907) | No |
| Type of fastening (EF002442) | None |
| VG approval (EF008107) | No |
| MIL approval (EF007933) | Yes |
| UL approval (EF008093) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
