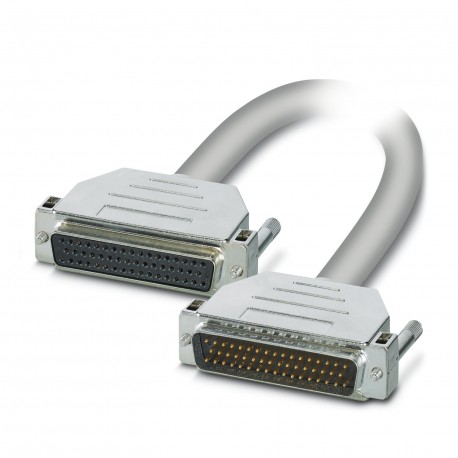

PHOENIX CONTACT CABLE-D50SUB/B/S/HF/S/ 1,0M CABLE-D50SUB/B/S/HF/S/ 1,0M 1066678 PHOENIX CONTACT Assembled, shielded, halogen-free round cable connection.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CABLE-D50SUB/B/S/HF/S/ 1,0M 1066678 PHOENIX CONTACT Assembled, shielded, halogen-free round cable connection..

CABLE-D50SUB/B/S/HF/S/ 1,0M

1066678

PHOENIX CONTACT

1 Pcs.

Assembled, shielded, halogen-free round cable; connection 1: D-SUB socket strip (1x 50-position); connection 2: D-SUB pin strip (1x 50-position); cable length: 1 m Ready-made, shielded and halogen-free round cable; Connection 1: Female connection D-SUB (1x 50-poles); connection 2: D-SUB male connector (1x 50-pole); Cable length: 1 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSystem cable
Data management status
Article revision01
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Degree of protection (Installation location)≥ IP54 (Installation location)
Ambient temperature (operation)-40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation)
Ambient temperature (storage/transport)-40 °C ... 80 °C
Altitude≤ 2000 m
Electrical properties
Operating voltage (AC)≤ 30 V AC
Operating voltage (DC)≤ 60 V DC
Nominal operating mode100% operating factor
Current (Per path)≤ 2 A (Uncoiled, see derating)
Cable/line
Cable length1 m
Number of positions50
Shieldedyes
Conductor typeAssembled, shielded, halogen-free round cable
Conductor structure signal line14x 0.15 mm
AWG signal line24
Conductor cross section50x 0.25 mm²
Wire diameter incl. insulation1.2 mm ±0.05 mm
External cable diameter12.80 mm ±0.5 mm
Outer sheath, materialHalogen-free sheath
External sheath, colorgray
Conductor materialBare Cu litz wires
Cable resistance≤ 80 Ω/km (at 20 °C)
Insulation resistance≥ 20 MΩ*km (at 20 °C)
Smallest bending radius, fixed installation107 mm
Smallest bending radius, movable installation200 mm
Dynamic load capacity (bending)Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
Halogen-freeyes
Flame resistanceIEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
Resistance to oilcan withstand occasional splashes (raw cable)
Color code
whiteD-SUB50 (1) = D-SUB50 (1)
brownD-SUB50 (2) = D-SUB50 (2)
greenD-SUB50 (3) = D-SUB50 (3)
yellowD-SUB50 (4) = D-SUB50 (4)
grayD-SUB50 (5) = D-SUB50 (5)
pinkD-SUB50 (6) = D-SUB50 (6)
blueD-SUB50 (7) = D-SUB50 (7)
redD-SUB50 (8) = D-SUB50 (8)
blackD-SUB50 (9) = D-SUB50 (9)
violetD-SUB50 (10) = D-SUB50 (10)
gray-pinkD-SUB50 (11) = D-SUB50 (11)
red-blueD-SUB50 (12) = D-SUB50 (12)
white-greenD-SUB50 (13) = D-SUB50 (13)
brown-greenD-SUB50 (14) = D-SUB50 (14)
white-yellowD-SUB50 (15) = D-SUB50 (15)
yellow-brownD-SUB50 (16) = D-SUB50 (16)
white-grayD-SUB50 (17) = D-SUB50 (17)
gray-brownD-SUB50 (18) = D-SUB50 (18)
white-pinkD-SUB50 (19) = D-SUB50 (19)
pink-brownD-SUB50 (20) = D-SUB50 (20)
white-blueD-SUB50 (21) = D-SUB50 (21)
brown-blueD-SUB50 (22) = D-SUB50 (22)
white-redD-SUB50 (23) = D-SUB50 (23)
brown-redD-SUB50 (24) = D-SUB50 (24)
white-blackD-SUB50 (25) = D-SUB50 (25)
brown-blackD-SUB50 (26) = D-SUB50 (26)
gray-greenD-SUB50 (27) = D-SUB50 (27)
yellow-grayD-SUB50 (28) = D-SUB50 (28)
pink-greenD-SUB50 (29) = D-SUB50 (29)
yellow-pinkD-SUB50 (30) = D-SUB50 (30)
green-blueD-SUB50 (31) = D-SUB50 (31)
yellow-blueD-SUB50 (32) = D-SUB50 (32)
green-redD-SUB50 (33) = D-SUB50 (33)
yellow-redD-SUB50 (34) = D-SUB50 (34)
green-blackD-SUB50 (35) = D-SUB50 (35)
yellow-blackD-SUB50 (36) = D-SUB50 (36)
gray-blueD-SUB50 (37) = D-SUB50 (37)
pink-blueD-SUB50 (38) = D-SUB50 (38)
gray-redD-SUB50 (39) = D-SUB50 (39)
pink-redD-SUB50 (40) = D-SUB50 (40)
gray-blackD-SUB50 (41) = D-SUB50 (41)
pink-blackD-SUB50 (42) = D-SUB50 (42)
blue-blackD-SUB50 (43) = D-SUB50 (43)
red-blackD-SUB50 (44) = D-SUB50 (44)
white-brownD-SUB50 (45) = D-SUB50 (45)
yellow-greenD-SUB50 (46) = D-SUB50 (46)
gray-pinkD-SUB50 (47) = D-SUB50 (47)
blue-redD-SUB50 (48) = D-SUB50 (48)
white-greenD-SUB50 (49) = D-SUB50 (49)
green-brownD-SUB50 (50) = D-SUB50 (50)
Connection data
Connection 1
Connection in acc. with standardIEC 60807-2
DIN 41652
Connection methodD-SUB socket strip
Screw threadUNC 4-40
Number of connections1
Number of positions50
Tightening torque0.2 Nm
Insertion/withdrawal cycles> 200
Pitch2.77 mm
Connection 2
Connection in acc. with standardIEC 60807-2
DIN 41652
Connection methodD-SUB pin strip
Screw threadUNC 4-40
Number of connections1
Number of positions50
Tightening torque0.2 Nm
Insertion/withdrawal cycles> 200
Pitch2.77 mm
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 1066678 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 1 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 50
