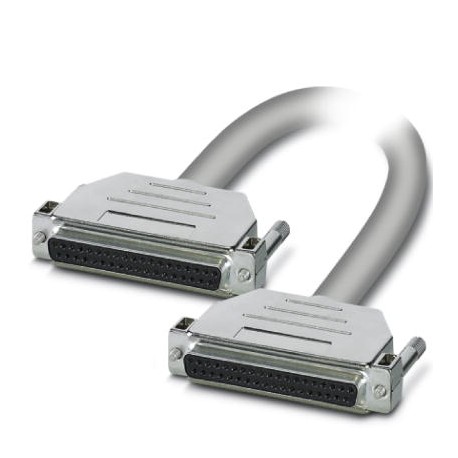

PHOENIX CONTACT CABLE-D37SUB/B/B/HF/S/15,0M CABLE-D37SUB/B/B/HF/S/15,0M 2908523 PHOENIX CONTACT Cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CABLE-D37SUB/B/B/HF/S/15,0M 2908523 PHOENIX CONTACT Cable

CABLE-D37SUB/B/B/HF/S/15,0M

2908523

PHOENIX CONTACT

1 Pcs.

Cable Ready-made, shielded and halogen-free round cable; Connection 1: Female connection D-SUB (1x 37-poles); Connection 2: Female connection D-SUB (1x 37-poles); Cable length: 15 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2908523
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 593 (C-5-2017)
GTIN4055626306612
Weight per Piece (excluding packing)3,061.000 g
Custom tariff number85444290
Country of originDE (Germany)

General

Nominal voltage UN25 V AC
60 V DC
Max. current carrying capacity per path2 A
Max. conductor resistance≤ 0.09 Ω/m
Length of cable15 m
Single wire, cross section0.25 mm²
Single wire, cross section [AWG]24
External diameter11.2 mm
Shieldingyes
Tinned copper braided shield
Insertion/withdrawal cycles> 200

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Connector 1

Connection nameField level
Connection methodD-SUB socket strip
Screw threadUNC 4-40
Torque0.2 Nm
Number of connections1
Number of positions37

Connector 2

Connection nameController level
Connection methodD-SUB socket strip
Screw threadUNC 4-40
Torque0.2 Nm
Number of connections1
Number of positions37

Supported controller

Controlleruniversal

Standards and Regulations

Standard designationFlame retardancy
Standards/regulationsIEC 60332-3-22
DIN VDE 0482-266-2-2
Standard designationHalogen-free
Standards/regulationsIEC 60754-1
DIN VDE 0482-267-1
Standard designationConcentration of fumes
Standards/regulationsIEC 61034-2
Standard designationCorrosiveness of fumes according
Standards/regulationsIEC 60754-2
DIN VDE 0472-813

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2908523 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 15 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 37
