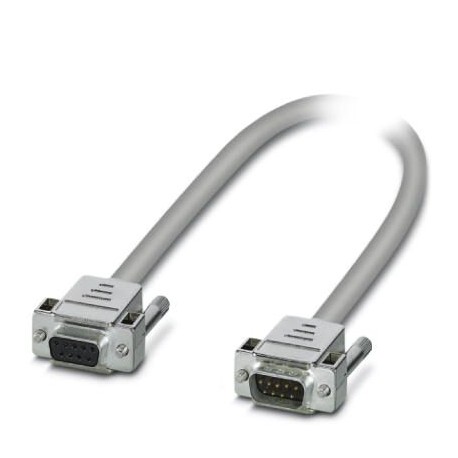

PHOENIX CONTACT CABLE-D 9SUB/B/S/HF/S/ 3,0M CABLE-D 9SUB/B/S/HF/S/ 3,0M 1066593 PHOENIX CONTACT Assembled, shielded, halogen-free round cable connection.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CABLE-D 9SUB/B/S/HF/S/ 3,0M 1066593 PHOENIX CONTACT Assembled, shielded, halogen-free round cable connection..

CABLE-D 9SUB/B/S/HF/S/ 3,0M

1066593

PHOENIX CONTACT

1 Pcs.

Assembled, shielded, halogen-free round cable; connection 1: D-SUB socket strip (1x 9-position); connection 2: D-SUB pin strip (1x 9-position); cable length: 3 m Ready-made, shielded and halogen-free round cable; Connection 1: Female connection D-SUB (1x 9-poles); connection 2: D-SUB male connector (1x 9-pole); Cable length: 3 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1066593
Packing unit1
Catalog pagePage 572 (C-5-2019)
GTIN4055626733029
Custom tariff number85444290

Drawings

Diagram

Diagram
Maximum permissible current per path in uncoiled state

Back to top

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation)
Ambient temperature (storage/transport)-40 °C ... 80 °C
Maximum altitude≤ 2000 m
Degree of protectionIP20
≥ IP54 (Installation location)
Back to top

General

Max. permissible operating voltage25 V AC
60 V DC
Max. current carrying capacity per path2 A (50 °C)
1 A (70°C)
Length of cable3 m
External cable diameter6.7 mm ±0.5 mm
Single wire, cross section0.25 mm²
Single wire, cross section [AWG]24
Single wire, number of litz wires14
Single wire, materialCu uninsulated
Wire diameter incl. insulation1.2 mm ±0.05 mm
Smallest bending radius, fixed installation58 mm
Smallest bending radius, movable installation108 mm
Bending cycles5000 (at a radius of ≥ 15x outside diameter)
Shieldingyes
Tinned copper braided shield
Cable insulation resistance≥ 20 MΩ/km (at 20 °C)
Cable resistance≤ 80 Ω/km (at 20 °C)
Outer sheath, materialHalogen-free sheath
External sheath, colorgray
Nominal operating mode100% operating factor
Back to top

Connection data

Connection nameField level
Connection methodD-SUB pin strip
Screw threadUNC 4-40
Number of connections1
Number of positions9
Torque0.2 Nm
Insertion/withdrawal cycles> 200
Back to top

Connection data 2

Connection nameController level
Connection methodD-SUB socket strip
Screw threadUNC 4-40
Number of connections1
Number of positions9
Torque0.2 Nm
Insertion/withdrawal cycles> 200
Back to top

Standards and Regulations

Flame resistanceIEC 60332-1-2
VDE 0842, Part 332-1-2
IEC 60332-3-22
Resistance to oilagainst occasional splashes
Gasoline resistanceagainst occasional splashes
DesignationAir clearances and creepage distances
Standards/regulationsDIN EN 50178
Rated insulation voltage125 V
Rated surge voltage1.2 kV
InsulationFunctional insulation
Pollution degree2
Overvoltage categoryII
Back to top

Supported controller

Controlleruniversal
Back to top

Color code

Connector 1 = connector 2 (optional) = wire colorD-SUB9 (1) = D-SUB9 (1) = white
D-SUB9 (2) = D-SUB9 (2) = brown
D-SUB9 (3) = D-SUB9 (3) = green
D-SUB9 (4) = D-SUB9 (4) = yellow
D-SUB9 (5) = D-SUB9 (5) = gray
D-SUB9 (6) = D-SUB9 (6) = pink
D-SUB9 (7) = D-SUB9 (7) = blue
D-SUB9 (8) = D-SUB9 (8) = red
D-SUB9 (9) = D-SUB9 (9) = black
Back to top

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 5.027242200
eCl@ss 5.127242200
eCl@ss 6.027249200
eCl@ss 7.027249205
eCl@ss 8.027249205
eCl@ss 9.027242220
Back to top

ETIM

ETIM 5.0EC000237
ETIM 6.0EC000237
ETIM 7.0EC000237
Back to top

ETIM for 1066593 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 3 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 9
