View larger
Images are for illustrative purposes only. Please refer to data sheet for details

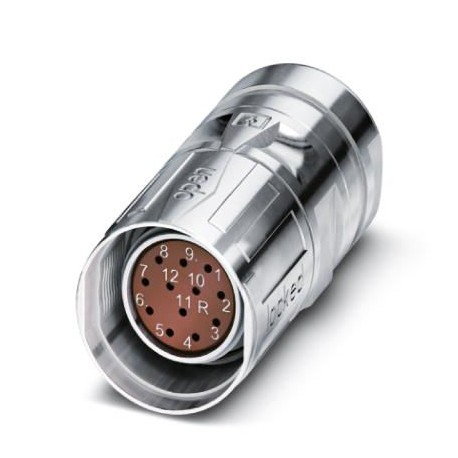

CA-12F2N8A8502S 1619468 PHOENIX CONTACT Cable connector
CA-12F2N8A8502S
1619468
PHOENIX CONTACT
1 Pcs.
Cable connector
M23, Plug connector. for cables, AC, straight, shielded: yes, SPEEDCON lock, No. of poles: 12, Direction of rotation: Opposite movement, type of contact: Female, Crimped connection, cable diameter range: 4 mm ... 6 mm, coding:N, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1243586
Connectors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1619468 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 102 (C-2-2017) |
| GTIN | 4046356823791 |
| Weight per Piece (excluding packing) | 93.200 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Data of the insulating body
| Note | Order information: Order crimp contacts Ø 1 mm separately |
|---|---|
| Coding | N |
| Insulator material | PA 6.6 |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Application | Feedback, signal |
| Number of positions | 12 |
| Contact diameter of power contacts | 1 mm |
| Nominal current per power contact at 25°C | 8 A |
| Nominal voltage, power contact | 150 V |
| Rated surge voltage | 2.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Degree of pollution | 3 |
Housing data
| Housing material | Metal |
|---|---|
| Type of locking | SPEEDCON locking |
| Degree of protection (when plugged in) | IP67 |
| Thread type | M23 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
