View larger
Images are for illustrative purposes only. Please refer to data sheet for details

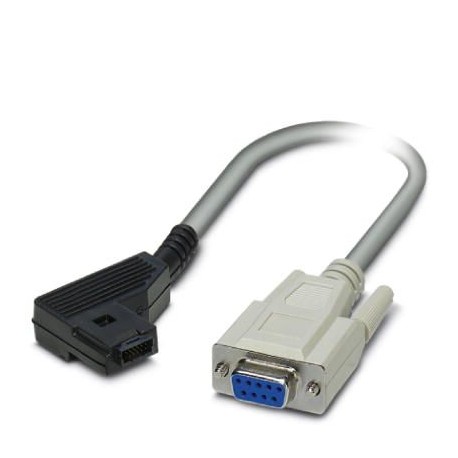

IFS-RS232-DATACABLE 2320490 PHOENIX CONTACT Data cable
IFS-RS232-DATACABLE
2320490
PHOENIX CONTACT
1 Pcs.
Data cable
Data cable for communication between devices with a 9-pin RS232 D-SUB connection and Phoenix Contact devices with a 12-pin IFS data port, such as QUINT UPS-IQ or TRIO UPS.
Cables > Data and communication cable
Power Supplies (PS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2320490 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 291 (C-4-2017) |
| GTIN | 4046356707602 |
| Weight per Piece (excluding packing) | 110.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C (-40 °F ... 185 °F) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C (-40 °F ... 185 °F) |
General
| Connection 1 | Device side |
|---|---|
| IFS (male) | |
| Connection method | D-SUB |
| Number of positions | 9 |
| Note | Serial, RS-232 |
| Connection 2 | Device side |
| D-SUB (female) | |
| Connection method | IFS data port |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027040702eCl@ss 4.127040702eCl@ss 5.027242213eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027061801eCl@ss 8.027061801eCl@ss 9.027061801
| Feature Name | Feature Value |
|---|---|
| Conductor surface (EF010804) | Other |
| Stranding (EF003802) | Other |
| Longitudinal water blocking cable (EF011011) | No |
| Radial water blocking cable (EF011012) | No |
| Suitable for underground installation (EF003689) | No |
| Protective sheath (EF001691) | None |
| Specification material outer sheath (EF011806) | Other |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Category (EF001619) | Other |
