View larger
Images are for illustrative purposes only. Please refer to data sheet for details

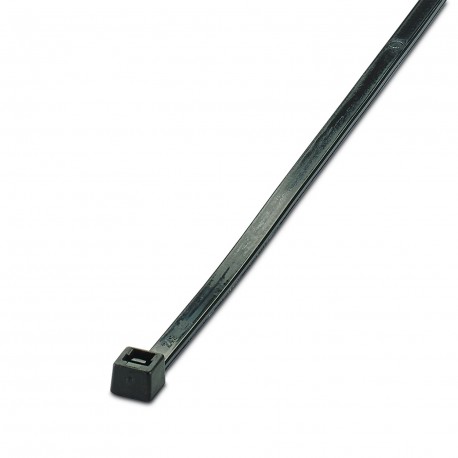

WT-HF 4,5X290 BK 3240765 PHOENIX CONTACT Cable tie
WT-HF 4,5X290 BK
3240765
PHOENIX CONTACT
100 Pcs.
Cable tie
Cable fasteners, standard version, for fast and safe grouping
Cable binders for quick and secure bundling, standard version
Cables > Cable tie
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable tie |
| Type | Internal teeth |
| Tensile strength GRP | 220 N |
Dimensions
| Width | 4.8 mm |
| Length | 290 mm |
Material specifications
| Color | black (RAL 9005) |
| Material | PA 6.6 |
| Flammability rating according to UL 94 | V2 |
| Components | free from silicone and halogen |
Cable/line
| External cable diameter | 3.5 mm ... 79 mm |
| Tensile strength | 220 N |
Environmental and real-life conditions
| Ambient conditions | |
| Optimum ambient temperature (storage/transport) | 23.00 °C 50.00 % Polyamide 6.6 has pronounced hygroscopic properties. It absorbs or releases water in accordance with the level of humidity within its environment. Its properties are ideal when the percentage of water is 2 - 3%. The packaging, which is tailored specifically to the product concerned, contains the optimum level of moisture.To ensure that the ideal properties are maintained, the following points should be observed during storage: Keep product stored inside sealed original packaging, carry out any product processing soon after breaking open the packaging, avoid direct sunlight, avoid direct heat. |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -10 °C ... 60 °C |
| Resistance to UV radiation | no |
| Short-term temperature | 110 °C |
Mounting
| Mounting type | Cannot be removed |
| Feature Name | Feature Value |
|---|---|
| Length belt/tape/tie (EF000063) | 290 mm |
| Tie thickness (EF004499) | 1.4 mm |
| Operating temperature (EF002393) | -10 °C |
| Mounting temperature (EF008326) | -10 °C |
| Band closure (EF007673) | Plastic lip/-cam |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Untreated |
| UV-stable according to ASTM D6779 (EF008099) | No |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Black |
| Transparent (EF006243) | No |
| Text strip (EF000129) | None |
| Releasable closure (EF004907) | No |
| Type of fastening (EF002442) | None |
| VG approval (EF008107) | No |
| MIL approval (EF007933) | Yes |
| UL approval (EF008093) | Yes |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
