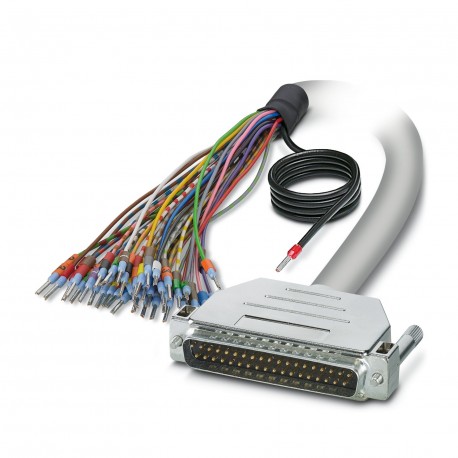

CABLE-D-37SUB/M/OE/0,25/S/2,0M 2926603 PHOENIX CONTACT Cable

CABLE-D-37SUB/M/OE/0,25/S/2,0M

2926603

PHOENIX CONTACT

1 Pcs.

Cable Shielded ready-made round cable; Connection 1: Single conductors (37-poles) (The conductors are labeled and equipped with ferrules. The braided screen protrudes from the separate cable end.); Connection 2: D-SUB Plug (1x 37-pole); Cable length: 2 m Assembled shielded round cable; connection 1: Single wires (37-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 37-position); cable length: 2 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSystem cable
Data management status
Article revision04
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Degree of protection (Installation location)≥ IP54 (Installation location)
Ambient temperature (operation)-40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation)
Ambient temperature (storage/transport)-40 °C ... 80 °C
Altitude≤ 2000 m
Electrical properties
Operating voltage (AC)≤ 30 V AC
Operating voltage (DC)≤ 60 V DC
Nominal operating mode100% operating factor
Current (Per path)≤ 2 A (Uncoiled, see derating)
Cable/line
Cable length2 m
37X0.25 [PVC]
UL AWM Style2464/1061
Number of positions37
Shieldedyes
Cable type37X0.25 [PVC]
Conductor typeAssembled shielded round cable
Conductor structure signal line14x 0.15 mm
AWG signal line24
Conductor cross section37x 0.25 mm²
Wire diameter incl. insulation1.2 mm ±0.05 mm
External cable diameter10.80 mm ±0.5 mm
Outer sheath, materialSemi-rigid PVC
External sheath, colorgray
Conductor materialBare Cu litz wires
Cable resistance≤ 80 Ω/km (at 20 °C)
Insulation resistance≥ 20 MΩ*km (at 20 °C)
Smallest bending radius, fixed installation90 mm
Smallest bending radius, movable installation170 mm
Dynamic load capacity (bending)Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
Halogen-freeno
Flame resistanceIEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1
Resistance to oilcan withstand occasional splashes (raw cable)
Color code
whiteD-SUB37 (1) = ()
brownD-SUB37 (2) = ()
greenD-SUB37 (3) = ()
yellowD-SUB37 (4) = ()
grayD-SUB37 (5) = ()
pinkD-SUB37 (6) = ()
blueD-SUB37 (7) = ()
redD-SUB37 (8) = ()
blackD-SUB37 (9) = ()
violetD-SUB37 (10) = ()
gray-pinkD-SUB37 (11) = ()
red-blueD-SUB37 (12) = ()
white-greenD-SUB37 (13) = ()
brown-greenD-SUB37 (14) = ()
white-yellowD-SUB37 (15) = ()
yellow-brownD-SUB37 (16) = ()
white-grayD-SUB37 (17) = ()
gray-brownD-SUB37 (18) = ()
white-pinkD-SUB37 (19) = ()
pink-brownD-SUB37 (20) = ()
white-blueD-SUB37 (21) = ()
brown-blueD-SUB37 (22) = ()
white-redD-SUB37 (23) = ()
brown-redD-SUB37 (24) = ()
white-blackD-SUB37 (25) = ()
brown-blackD-SUB37 (26) = ()
gray-greenD-SUB37 (27) = ()
yellow-grayD-SUB37 (28) = ()
pink-greenD-SUB37 (29) = ()
yellow-pinkD-SUB37 (30) = ()
green-blueD-SUB37 (31) = ()
yellow-blueD-SUB37 (32) = ()
green-redD-SUB37 (33) = ()
yellow-redD-SUB37 (34) = ()
green-blackD-SUB37 (35) = ()
yellow-blackD-SUB37 (36) = ()
gray-blueD-SUB37 (37) = ()
Connection data
Connection 1
Connection methodSingle wires
Stripping length (Sheath) 150 mm
Number of positions37
NoteThe wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.
Connection 2
Connection in acc. with standardIEC 60807-2
DIN 41652
Connection methodD-SUB pin strip
Screw threadUNC 4-40
Number of connections1
Number of positions37
Tightening torque0.2 Nm
Insertion/withdrawal cycles> 200
Pitch2.77 mm
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
