View larger
Images are for illustrative purposes only. Please refer to data sheet for details

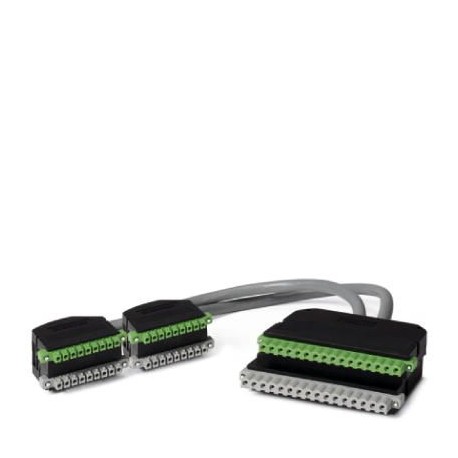

CAB-MSTB32/2XMC9/22/25,0M/C3/S 1065474 PHOENIX CONTACT Interface cable
CAB-MSTB32/2XMC9/22/25,0M/C3/S
1065474
PHOENIX CONTACT
1 Pcs.
Interface cable
16-channel VIP cable for use with Honeywell C300 Universal I/O Module, 22 AWG, 25 m length
Cables > PLC connection cable
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1065474 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626728025 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85444290 |
| Country of origin | US (United States) |
General
| Nominal voltage UN | < 30 V AC/DC |
|---|---|
| Max. current carrying capacity per path | 2 A |
| Length of cable | 25 m |
| Single wire, cross section | 0.36 mm² |
| Single wire, cross section [AWG] | 22 |
| Conductor construction: Number of litz wires: | 7 |
| Single wire, material | Cu tin-plated |
| External diameter | 8.5 mm |
| Shielding | yes |
| Tinned copper-braided shield, approx. 85% covering |
Environmental conditions
| Ambient temperature (operation) | -40 °C ... 90 °C (static) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 90 °C |
| Flame resistance | IEC 60332-1 |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | pluggable |
| Number of connections | 2 |
| Number of positions | 18 |
| Pitch | 3.81 mm |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | pluggable |
| Number of connections | 1 |
| Number of positions | 32 |
| Pitch | 5.08 mm |
