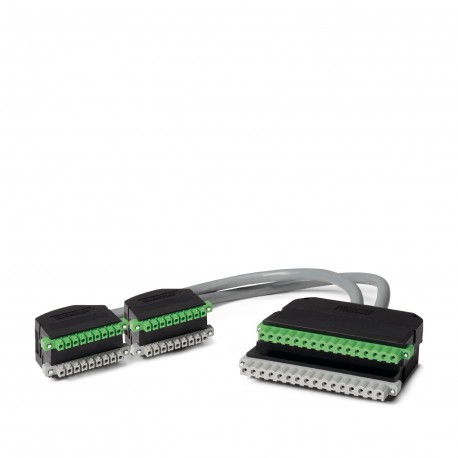

PHOENIX CONTACT CAB-MSTB32/2XMC9/22/18,0M/C3/S CAB-MSTB32/2XMC9/22/18,0M/C3/S 1013239 PHOENIX CONTACT Interface cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CAB-MSTB32/2XMC9/22/18,0M/C3/S 1013239 PHOENIX CONTACT Interface cable

CAB-MSTB32/2XMC9/22/18,0M/C3/S

1013239

PHOENIX CONTACT

1 Pcs.

Interface cable 16-channel VIP cable for use with Honeywell C300 Universal I/O Module, 22 AWG, 18.0 m length VIP 16-channel cable for use with Honeywell C300 universal I/O, 22 AWG, 18.0 m long

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSystem cable
Product familyVIP I/O-Marshalling
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 90 °C (static)
Ambient temperature (storage/transport)-40 °C ... 90 °C
Electrical properties
Operating voltage (AC/DC)≤ 30 V AC/DC
Current (Per path)≤ 2 A
Cable/line
Cable length18 m
Number of positions16
Shieldedyes
Conductor typeAssembled shielded round cable
Conductor structure signal line7x
AWG signal line22
Conductor cross section16x 0.36 mm²
External cable diameter8.50 mm
Conductor materialTin-plated Cu litz wires
Halogen-freeyes
Flame resistanceIEC 60332-1
Cable typeSplitting cable for two modules
Connection data
Field level
Connection methodpluggable
Number of connections2
Number of positions18
Pitch3.81 mm
Controller level
Connection methodpluggable
Number of connections1
Number of positions32
Pitch5.08 mm
